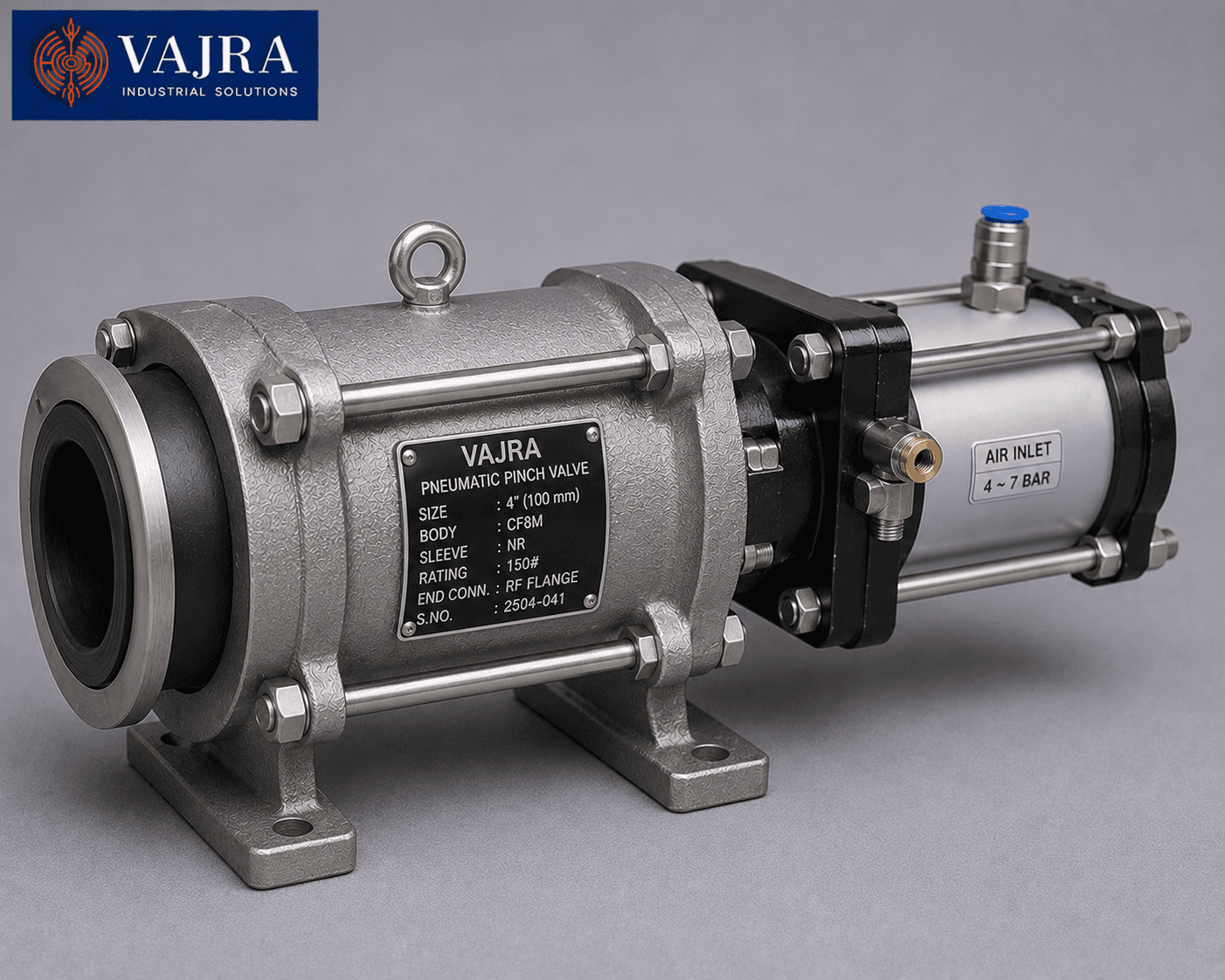

Pneumatic Pinch Valve
Air-operated pinch valve for automated control of abrasive and viscous fluids.
Technical Specifications
| Type | Pneumatic (Air Operated) |
| Size Range | 1" to 16" (25 mm to 400 mm) |
| Sleeve Material | EPDM, Neoprene, Natural Rubber, Hypalon |
| Body Material | Aluminum Alloy, Stainless Steel |
| Actuator | Pneumatic (3-15 psi / 4-20 mA signal) |
| End Connections | Flanged, Threaded |
| Pressure Rating | PN6 / PN10 |
| Standards | MSS SP-88 |
Applications
Batch processing, food & beverage, mining, wastewater
About the Pneumatic Pinch Valve
The pneumatic pinch valve uses compressed air pressure acting directly on the outside of the flexible rubber sleeve (in direct-acting designs) or on a pneumatic cylinder that drives the pinch bars (in cylinder-actuated designs) to close the valve. In the most compact direct-acting design, the sleeve is enclosed in an air-tight housing: applying air pressure to the housing squeezes the sleeve closed; venting the housing allows the sleeve to spring back open. This eliminates the need for a separate actuator - the compressed air acts directly on the sleeve, making the valve extremely fast-acting (typical close time 0.5–2 seconds) and mechanically simple with no moving actuator parts.
Pneumatic pinch valves are the preferred automated valve for batch processing operations handling slurry, powder, or viscous material: each batch dose is controlled by the time the valve remains open, or by integrating the valve with a flow meter in a PLC batch control loop. In the food and pharmaceutical industry, the pneumatic pinch valve's hygienic design - with no internal metal parts and an easily replaceable sleeve - enables rapid changeover between product runs without cross-contamination risk. Vajra Industrial Solutions supplies pneumatic pinch valves from 1" to 16" in direct-acting (air-to-close spring-return) and cylinder-actuated (double-acting) configurations with all standard sleeve materials.
Where It's Used
Key industries and applications for the Pneumatic Pinch Valve
Concrete batching plants
pneumatic pinch valves on cement, fly ash, and aggregate slurry delivery lines to batch mixers; fast open/close cycling for accurate batch dosing; robust sleeve handles highly abrasive cement slurry at high duty cycles
Mining and hydrometallurgy
pneumatic pinch valves on leach solution, reagent dosing, and slurry transfer lines in automated heap leach and tank leach operations; direct-acting design eliminates actuator maintenance in remote mine site installations
Food and beverage batch processing
SS316 body pneumatic pinch valves with FDA-EPDM sleeve for automated batch dosing of juices, dairy products, beer wort, and sauces; hygienic sleeve replacement during CIP without valve body removal
Pharmaceutical and biotech powder transfer
SS316 body pinch valves with sterilisable EPDM or silicone sleeve for automated powder transfer in pharmaceutical granulation, tablet coating, and API manufacturing batch systems
Wastewater polymer and chemical dosing
pneumatic pinch valves on polymer emulsion, coagulant, and disinfectant dosing to wastewater treatment reactors; packing-free design in contact with polymer prevents common packing seizure problem
How to Choose the Right Pneumatic Pinch Valve
Pneumatic pinch valves are ideal for automated batch control of abrasive, viscous, and particle-laden fluids where actuation speed, hygienic cleanability, and sleeve replaceability are priorities. Select direct-acting (air-to-close) for simple on/off duty where supply air pressure reliably exceeds the process fluid pressure by 1.5×; select cylinder-actuated for larger sizes (above 4") where the force required to close against process pressure exceeds direct-acting air capability. Sleeve material must be chemically compatible with the process fluid at operating temperature - always confirm sleeve compatibility with the process fluid.
Popular Configurations
Most commonly ordered specifications for the Pneumatic Pinch Valve
Frequently Asked Questions
About Pneumatic Pinch Valve - ordering, specs, delivery & compliance
What standards does the Pneumatic Pinch Valve comply with?+
Our Pneumatic Pinch Valve complies with MSS SP-88. All products are manufactured to international standards and come with full material test reports (MTR), dimensional inspection reports, and hydrostatic test certificates on request.
What materials are available for the Pneumatic Pinch Valve?+
The Pneumatic Pinch Valve is available in Aluminum Alloy, Stainless Steel. Material selection depends on your process fluid, temperature, pressure, and corrosion requirements.
What is the delivery lead time for Pneumatic Pinch Valve?+
Standard stock sizes are available for immediate dispatch from our Vadodara warehouse. Custom sizes and special materials typically have a lead time of 2–6 weeks depending on specifications. We serve customers across India within 1–7 business days and export to the Middle East, Southeast Asia, Europe, and the Americas with full export documentation.
Can I get a custom Pneumatic Pinch Valve for a specific application?+
Yes. Vajra Industrial Solutions supplies custom-engineered pinch valves for specific process conditions. Submit your technical requirements - including pressure class, temperature range, fluid type, end connections, and any special trim or coating needs - via our RFQ form or WhatsApp, and our engineering team will respond within 24 hours.
What pressure ratings are available for the Pneumatic Pinch Valve?+
The Pneumatic Pinch Valve is available in pressure ratings of PN6 / PN10. Higher-pressure classes are available for critical service applications in oil & gas, power generation, and chemical processing.
How do I request a quote for the Pneumatic Pinch Valve?+
You can request a quote by clicking the "Request Quote" button on this page, filling out our RFQ form at vajravyuh.com/rfq, emailing us at sales@vajravyuh.com, or WhatsApping us directly at +91-9979774557. Please include quantity, size, pressure class, material grade, and end-connection type for the fastest response.
