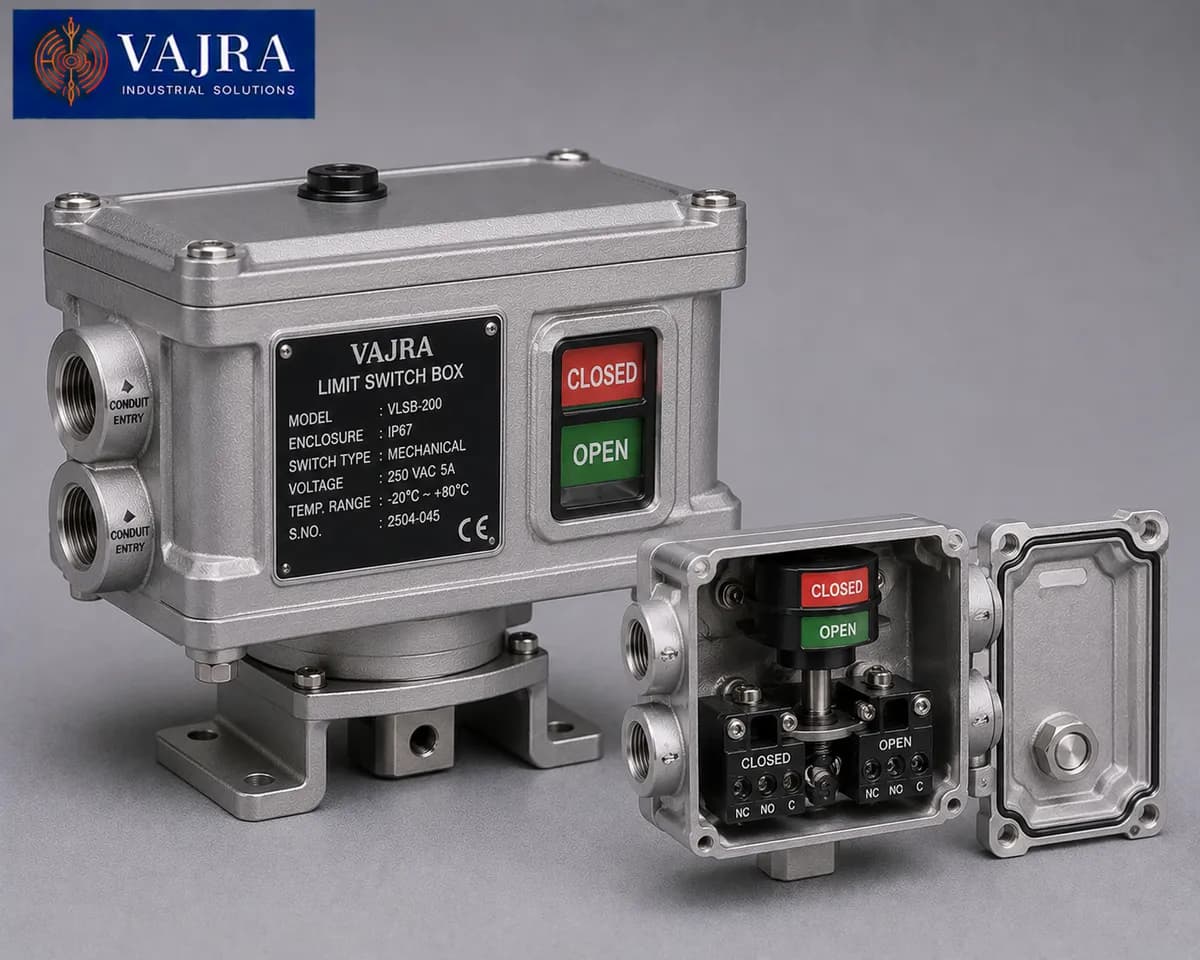

Limit Switch Box
Visual and electrical position feedback for automated valves.
Technical Specifications
| Type | Mechanical / Proximity |
| Switches | 2 x SPDT (customizable) |
| Body Materials | Die-cast Aluminum, Polycarbonate, Stainless Steel |
| Protection Rating | IP67 / Ex-proof (Ex d, Ex ia) |
| Mounting Standard | NAMUR / Direct |
| Indicators | Visual dome indicators |
| Standards | IEC 60529, ATEX, IECEx |
Applications
Remote monitoring, control room feedback, safety systems
About the Limit Switch Box
The limit switch box (also called a valve monitor box or position indicator box) mounts directly on top of the actuator via NAMUR or direct-drive coupling and contains mechanical micro-switches or proximity sensors that are triggered by a cam or magnet coupled to the actuator's output shaft. When the valve reaches the fully open or fully closed position, the cam activates the corresponding switch, sending a discrete digital signal (typically 24V DC or 230V AC) back to the control room, DCS, ESD system, or PLC - confirming valve position without requiring an operator to physically inspect the valve. Visual dome indicators on top of the box provide instant visual confirmation of valve position for local operators from a safe distance.
For safety-instrumented systems (SIS) compliant with IEC 61511 / IEC 61508, valve position feedback from limit switch boxes is an essential element of the proof-test circuit that verifies the ESD valve actually closed on demand. Proximity sensors (non-contact, inductive or magnetic) are preferred for high-reliability SIS applications as they have no mechanical contact to wear, providing lower proof-test failure probability than mechanical micro-switches. ATEX/IECEx certified explosion-proof (Ex d) or intrinsically safe (Ex ia) variants are mandatory for valves installed in gas zone or dust zone hazardous areas. Vajra Industrial Solutions supplies limit switch boxes in IP67 and Ex-rated versions with mechanical or proximity sensors.
Where It's Used
Key industries and applications for the Limit Switch Box
ESD valve position confirmation
Ex d or Ex ia limit switch boxes on ESD ball valves and gate valves in oil, gas, and chemical plants; IEC 61511 SIS proof test verifies valve position feedback signal; used to confirm shutdown valve closure on HIPPS trip
Pipeline SCADA integration
IP67 limit switch boxes on remote pipeline block valves; discrete open/closed signals transmitted to SCADA system via RTU for real-time pipeline status monitoring without operator site visit
Process automation DCS interlocks
limit switch boxes on automated process valves (ball, butterfly, gate) in refineries, petrochemical plants, and chemical factories; position feedback signals used in DCS control logic for process sequencing and interlock confirmation
Pharmaceutical clean room
polycarbonate or SS316 enclosure limit switch boxes on sanitary automated valves in pharmaceutical CIP/SIP systems; non-metallic enclosure resists cleaning chemical corrosion; IP67 for frequent washdown
Water and wastewater SCADA
IP67 limit switch boxes on motorised butterfly and gate valves in WTP and WWTP control systems; position signals integrated with plant SCADA for automated filter backwash sequencing, pump station control, and remote monitoring
How to Choose the Right Limit Switch Box
Select limit switch box type based on application criticality and hazardous area classification: (a) mechanical micro-switch type for general process automation where DCS position confirmation is needed; (b) non-contact proximity sensor type for SIS/ESD applications where low proof-test failure probability is required; (c) ATEX Ex d for Zone 1 gas hazardous areas; (d) ATEX Ex ia for Zone 0 or where intrinsically safe circuits are used. Always verify the NAMUR mounting interface matches the actuator top-works to ensure correct cam alignment and accurate position sensing.
Popular Configurations
Most commonly ordered specifications for the Limit Switch Box
Frequently Asked Questions
About Limit Switch Box - ordering, specs, delivery & compliance
What standards does the Limit Switch Box comply with?+
Our Limit Switch Box complies with IEC 60529, ATEX, IECEx. All products are manufactured to international standards and come with full material test reports (MTR), dimensional inspection reports, and hydrostatic test certificates on request.
What materials are available for the Limit Switch Box?+
The Limit Switch Box is available in Die-cast Aluminum, Polycarbonate, Stainless Steel. Material selection depends on your process fluid, temperature, pressure, and corrosion requirements.
What is the delivery lead time for Limit Switch Box?+
Standard stock sizes are available for immediate dispatch from our Vadodara warehouse. Custom sizes and special materials typically have a lead time of 2–6 weeks depending on specifications. We serve customers across India within 1–7 business days and export to the Middle East, Southeast Asia, Europe, and the Americas with full export documentation.
Can I get a custom Limit Switch Box for a specific application?+
Yes. Vajra Industrial Solutions supplies custom-engineered accessories for specific process conditions. Submit your technical requirements - including pressure class, temperature range, fluid type, end connections, and any special trim or coating needs - via our RFQ form or WhatsApp, and our engineering team will respond within 24 hours.
What pressure ratings are available for the Limit Switch Box?+
The Limit Switch Box is available in pressure ratings of PN10 to PN400 (ANSI Class 150 to Class 2500). Higher-pressure classes are available for critical service applications in oil & gas, power generation, and chemical processing.
How do I request a quote for the Limit Switch Box?+
You can request a quote by clicking the "Request Quote" button on this page, filling out our RFQ form at vajravyuh.com/rfq, emailing us at sales@vajravyuh.com, or WhatsApping us directly at +91-9979774557. Please include quantity, size, pressure class, material grade, and end-connection type for the fastest response.
Need a Quote for Limit Switch Box?
Our technical sales team responds within 24 hours. Share your specs and get competitive pricing.
Other Accessories

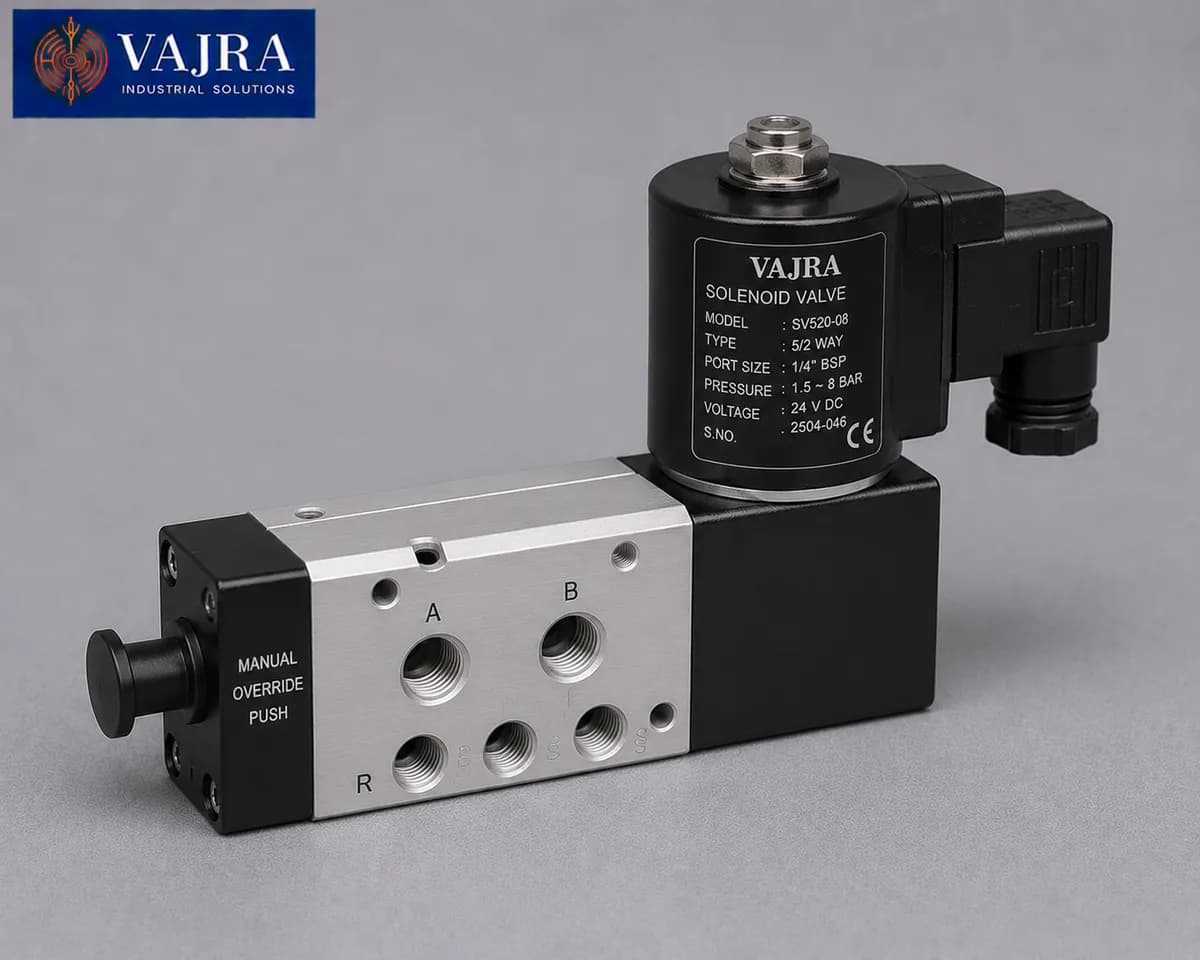

Solenoid Valve
Pilot solenoid valves for pneumatic actuator control.
View Details →

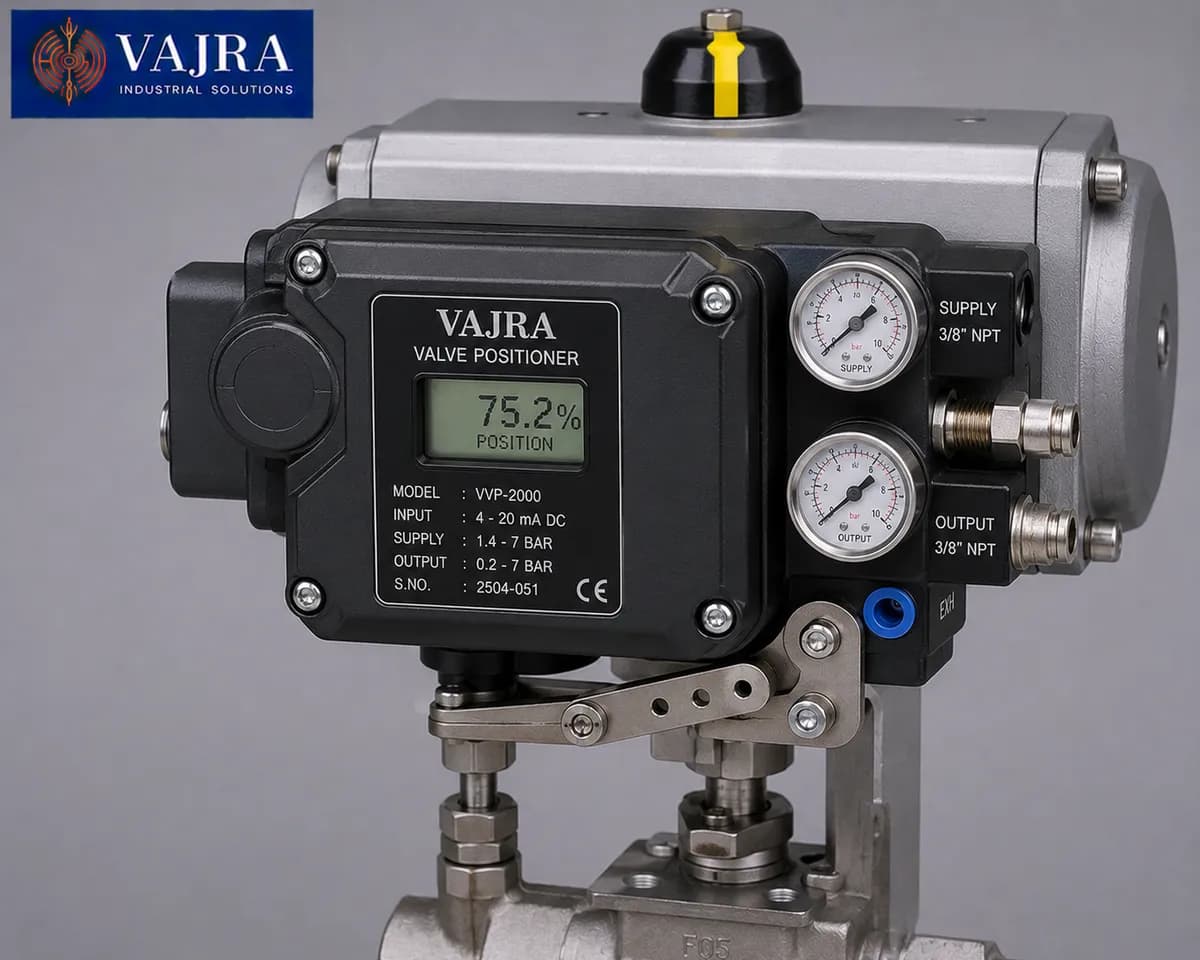

Valve Positioner
Pneumatic or electro-pneumatic positioner for precise valve positioning.
View Details →

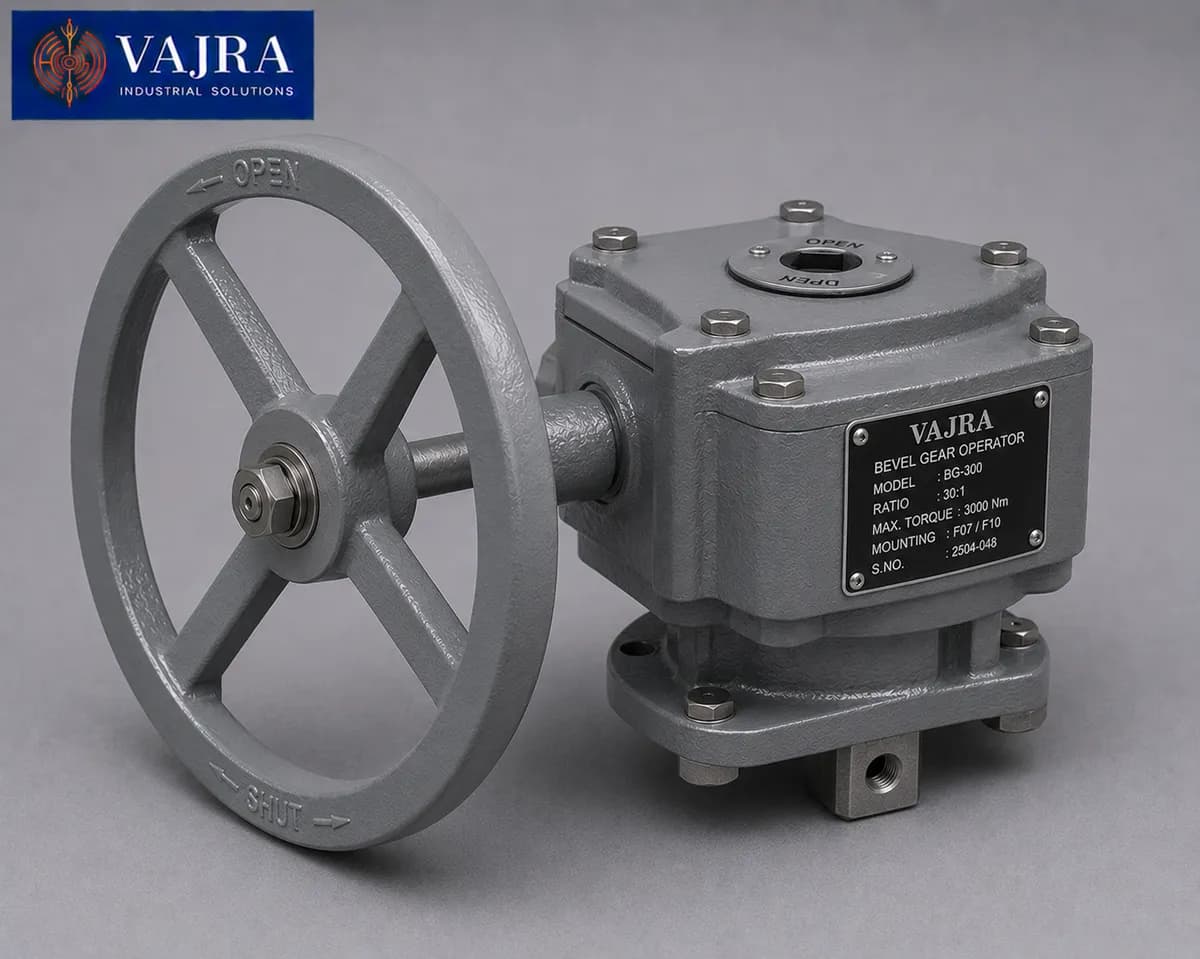

Manual Gear Operator (Gearbox)
Bevel or spur gear operator for manual operation of large-diameter ball, gate, butterfly, and plug valves.
View Details →

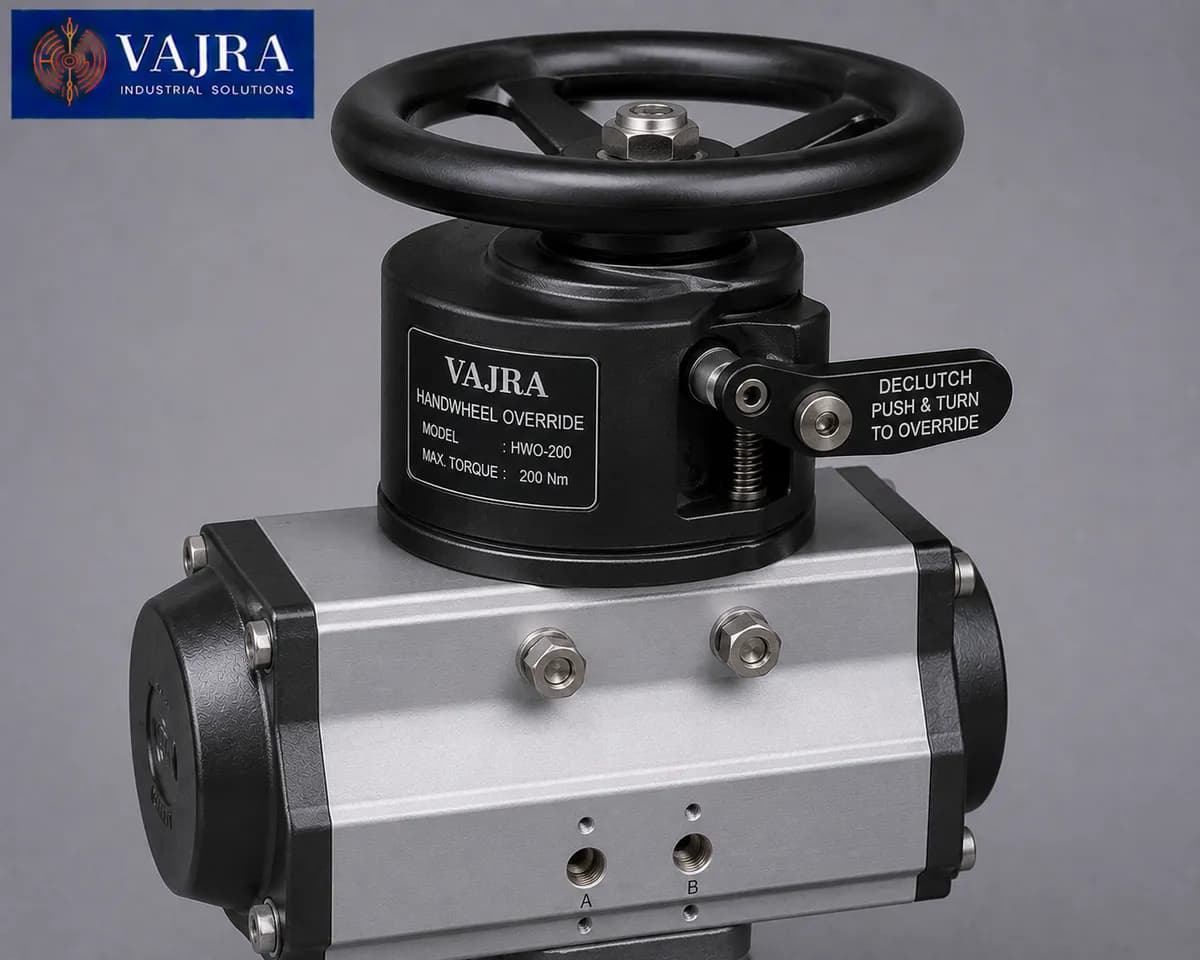

Handwheel Override for Actuators
