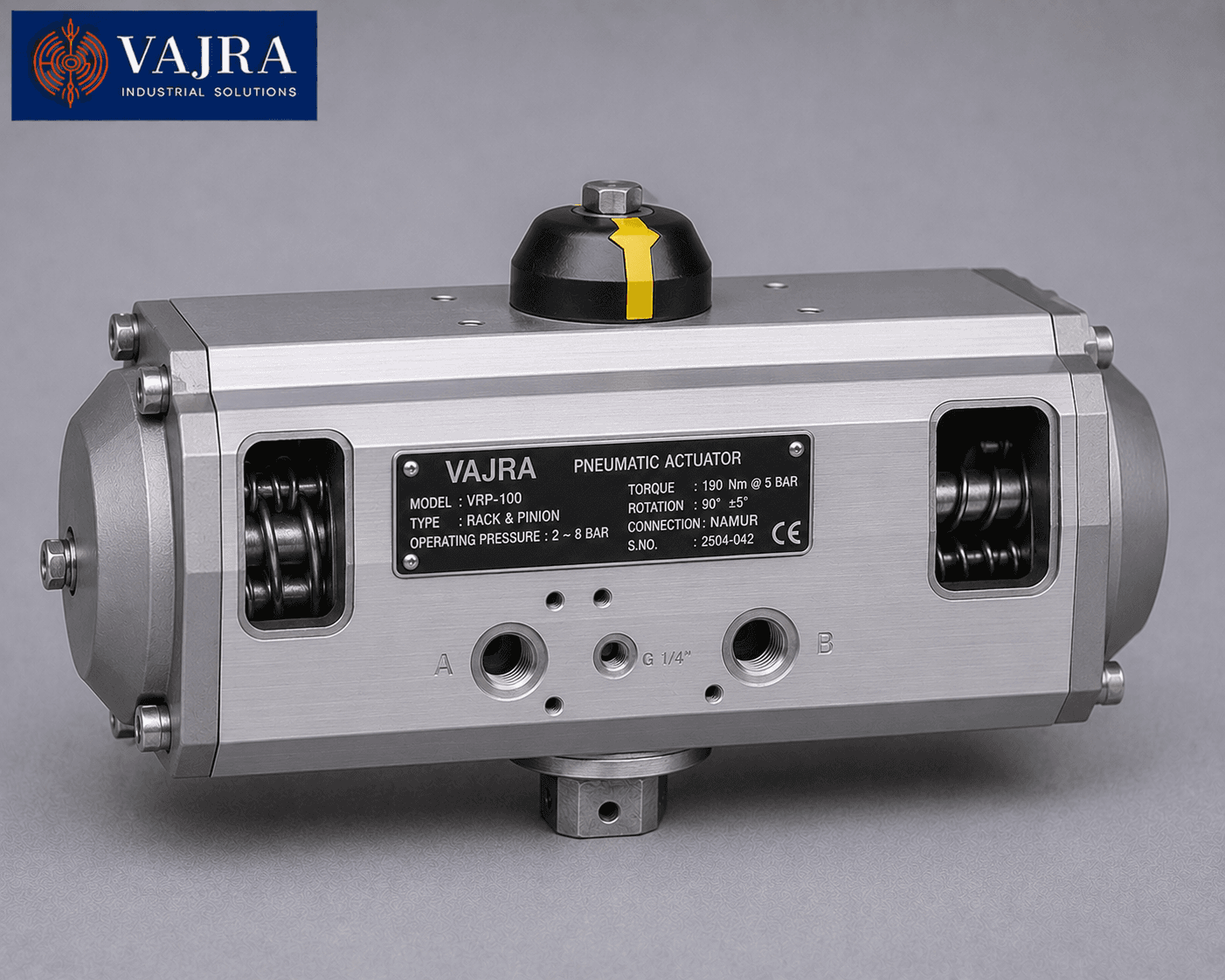

Pneumatic Rack & Pinion Actuator
Double acting or spring return actuators for 90-degree rotation valves.
Technical Specifications
| Type | Rack & Pinion |
| Torque Range | Up to 10,000 Nm |
| Body Materials | Aluminum Alloy (Hard Anodized), Stainless Steel |
| Action | Double Acting / Spring Return (Fail-Safe) |
| Air Supply | 4-8 bar (60-120 psi) |
| Mounting Standard | ISO 5211 / DIN 3337 |
| Accessories | Solenoid valves, limit switches, positioners |
| Standards | NAMUR,ISO 5211 |
| Lead Time | Ex-stock Gujarat: Same day | Standard items: 2–4 weeks | Exotic alloys: 8–12 weeks |
Applications
Ball valves, butterfly valves, plug valves, process automation
About the Pneumatic Rack & Pinion Actuator
The pneumatic rack and pinion actuator is the most widely used device for automating quarter-turn valves - ball valves, butterfly valves, and plug valves - in process plant automation. The design converts linear piston movement (driven by compressed air acting on one or both faces of a piston inside a cylinder) into 90-degree rotary output motion through an interlocking rack-and-pinion gear mechanism. The output shaft is machined to ISO 5211 or DIN 3337 standards, ensuring direct mounting compatibility with virtually all quarter-turn valve top-works.
Two actuator actions are available. In double-acting designs, air pressure drives the piston in both directions: open and close positions are both air-powered, giving maximum torque in both directions. In spring-return (single-acting) designs, air drives the piston in one direction while a bank of compression springs drives the piston in the opposite direction on air failure - providing a defined fail-safe position (fail-open or fail-closed) required in safety and ESD applications.
Vajra Industrial Solutions supplies aluminium hard-anodised and stainless steel rack & pinion actuators from 30 Nm to 10,000 Nm in single-acting (spring return) and double-acting configurations. NAMUR-pattern top covers and accessory mounting pads accept solenoid valves, limit switches, positioners, and handwheel overrides directly. All actuators are factory air-tested with ISO 5211 mounting flanges and NAMUR accessory pads.
Where It's Used
Key industries and applications for the Pneumatic Rack & Pinion Actuator
Process plant automation
rack & pinion actuators paired with 4"–12" ball valves for automated block valves on chemical, pharmaceutical, and petrochemical process lines; double-acting configuration where air supply is reliable
ESD and safety shutdown systems
spring-return (fail-closed) actuators on 2"–8" ball valves in ESD loops where the valve must close on loss of instrument air per IEC 61511 functional safety requirements
Pipeline automation
double-acting rack & pinion actuators on 6"–24" trunnion ball valves and butterfly valves at remote pipeline block valve stations; solenoid + limit switch accessories enable SCADA integration
HVAC and building automation
compact aluminium rack & pinion actuators on 2"–8" butterfly valves for chilled water and heating water AHU control circuits; 24V DC electric solenoid compatible with BMS
Water and wastewater treatment
stainless steel rack & pinion actuators on 4"–16" ball or butterfly valves in dosing stations, filter backwash systems, and UV disinfection bypass lines
How to Choose the Right Pneumatic Rack & Pinion Actuator
Size a rack & pinion actuator by matching its output torque (at minimum supply pressure - typically 4 bar) to the valve's Maximum Required Torque (MRT) with a safety factor of 1.25× for double-acting and 1.50× for spring-return. Do not use nominal supply pressure for sizing - field air pressure can drop to 4 bar or less during plant upset. For valves above 24", consider scotch-yoke actuators which provide higher torque at end positions. Always specify the desired fail position (fail-open, fail-closed, or fail-in-last-position) before ordering.
Popular Configurations
Most commonly ordered specifications for the Pneumatic Rack & Pinion Actuator
Frequently Asked Questions
About Pneumatic Rack & Pinion Actuator - ordering, specs, delivery & compliance
What standards does the Pneumatic Rack & Pinion Actuator comply with?+
Our Pneumatic Rack & Pinion Actuator complies with NAMUR, ISO 5211. All products are manufactured to international standards and come with full material test reports (MTR), dimensional inspection reports, and hydrostatic test certificates on request.
What materials are available for the Pneumatic Rack & Pinion Actuator?+
The Pneumatic Rack & Pinion Actuator is available in Aluminum Alloy (Hard Anodized), Stainless Steel. Material selection depends on your process fluid, temperature, pressure, and corrosion requirements.
What is the delivery lead time for Pneumatic Rack & Pinion Actuator?+
Standard stock sizes are available for immediate dispatch from our Vadodara warehouse. Custom sizes and special materials typically have a lead time of 2–6 weeks depending on specifications. We serve customers across India within 1–7 business days and export to the Middle East, Southeast Asia, Europe, and the Americas with full export documentation.
Can I get a custom Pneumatic Rack & Pinion Actuator for a specific application?+
Yes. Vajra Industrial Solutions supplies custom-engineered actuators for specific process conditions. Submit your technical requirements - including pressure class, temperature range, fluid type, end connections, and any special trim or coating needs - via our RFQ form or WhatsApp, and our engineering team will respond within 24 hours.
What pressure ratings are available for the Pneumatic Rack & Pinion Actuator?+
The Pneumatic Rack & Pinion Actuator is available in pressure ratings of PN10 to PN400 (ANSI Class 150 to Class 2500). Higher-pressure classes are available for critical service applications in oil & gas, power generation, and chemical processing.
How do I request a quote for the Pneumatic Rack & Pinion Actuator?+
You can request a quote by clicking the "Request Quote" button on this page, filling out our RFQ form at vajravyuh.com/rfq, emailing us at sales@vajravyuh.com, or WhatsApping us directly at +91-9979774557. Please include quantity, size, pressure class, material grade, and end-connection type for the fastest response.
What is a Pneumatic Rack & Pinion Actuator?
Double acting or spring return actuators for 90-degree rotation valves..
Procurement & Specification
Typical Applications
Available Standards
Material Options
Documentation Available
- -EN 10204 3.1 Material Test Certificates (heat traceable)
- -API 598 hydrostatic shell & seat test reports
- -Dimensional inspection reports
- -Full Manufacturing Data Record (MDR) / data book on request
Inspection Options
- -In-house QC inspection on every order
- -Third-party inspection (SGS / Bureau Veritas / TÜV / DNV) coordination
- -Witness and hold points accommodated on request
Order Quantities
Flexible — from single critical-spare valves to full project lots.
Export
Worldwide export with complete documentation (COO, EUR.1, packing lists) to 20+ countries.
Custom Engineering
Built to your specification — materials, trim, pressure class and special service (NACE, fire-safe, IBR, cryogenic).
Delivery Support
Dispatch from Vadodara, Gujarat with documented lead times and priority handling for urgent requirements.
