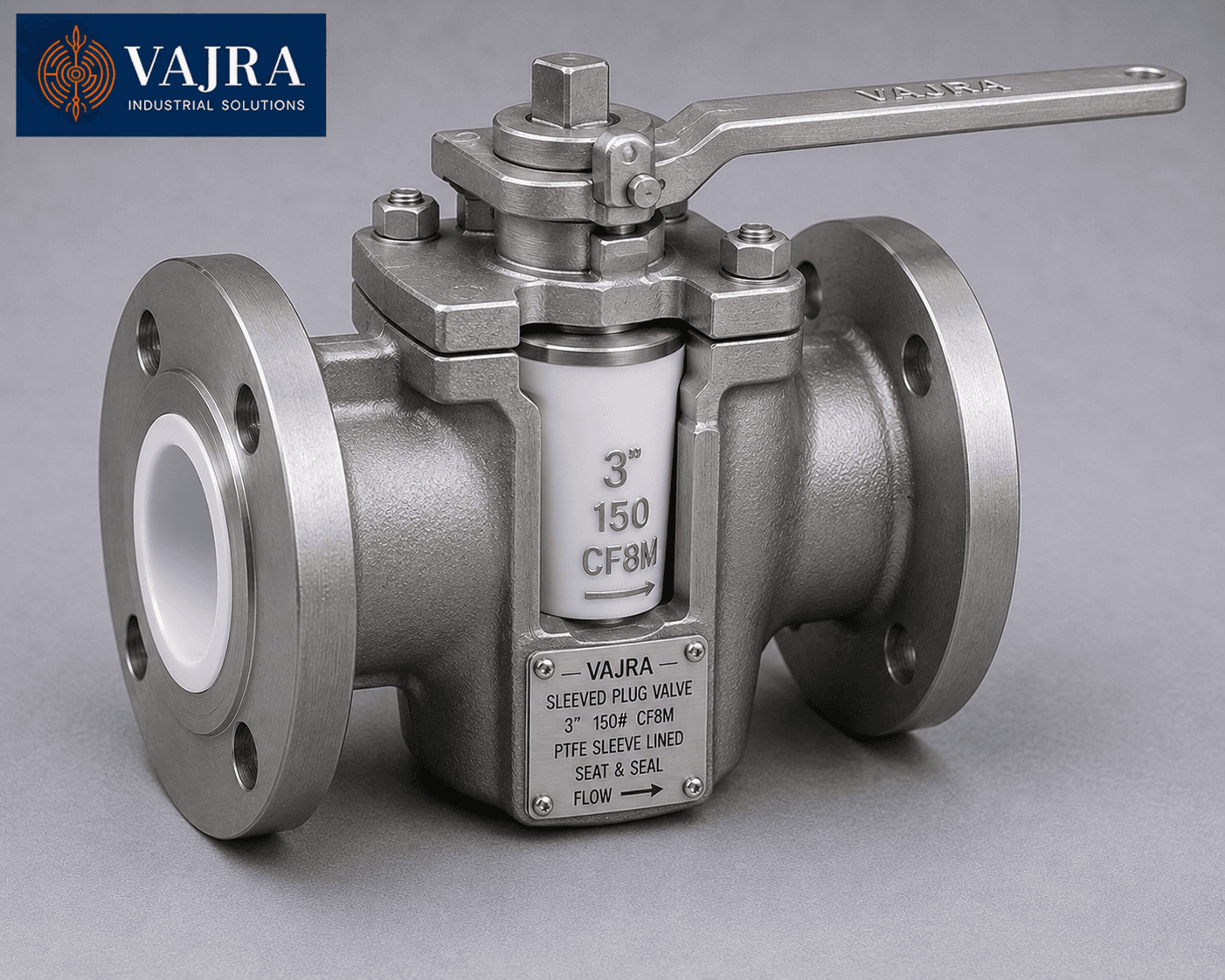

Sleeved Plug Valve
Self-lubricating PTFE sleeved design for chemical and corrosive media applications.
Technical Specifications
| Type | Sleeved (PTFE Lined) |
| Size Range | 1/2" to 8" (15 mm to 200 mm) |
| Body Materials | Carbon Steel, Stainless Steel |
| Plug Material | PTFE Sleeved Plug |
| Sleeve Material | PTFE, PFA |
| End Connections | Flanged, Screwed |
| Pressure Rating | PN16, Class 150 |
| Standards | API 599, MSS SP-78 |
Applications
Chemical processing, acids, corrosive fluids
About the Sleeved Plug Valve
The sleeved plug valve (also called a non-lubricated plug valve) uses a PTFE or PFA sleeve that lines the inside of the valve body cavity and forms the seating surface against the plug faces. The sleeve is slightly compressed between the body and plug, creating a positive seal without the need for any sealant injection. PTFE's inherent self-lubricating properties allow the plug to rotate through the sleeve with low torque even after extended periods at rest, eliminating the common problem with lubricated plug valves where the sealant dries out and the plug seizes if the valve is infrequently operated.
The PTFE or PFA sleeve also provides the wetted surfaces of the valve with broad chemical resistance, since PTFE is compatible with most acids, alkalis, solvents, and oxidising media at temperatures up to 200°C. The plug and body metal components are isolated from the process fluid by the sleeve - making sleeved plug valves the preferred choice in pharmaceutical, food grade, and ultra-pure water services where metal contamination of the process must be prevented. Vajra Industrial Solutions supplies sleeved plug valves in sizes 1/2" to 8" with PTFE or PFA sleeves in Carbon Steel and SS316 body materials to API 599.
Where It's Used
Key industries and applications for the Sleeved Plug Valve
Chemical processing
SS316 body with PTFE sleeve sleeved plug valves for concentrated acid (H2SO4, HCl, HNO3), caustic soda, and chlorinated solvent lines; no sealant injection required, maintenance-free operation for clean chemical service
Pharmaceutical and biotech
SS316 or Hastelloy body with PFA sleeve sleeved plug valves for solvent, acid, and pharmaceutical intermediate lines; PFA sleeve provides low-extractable, purity-compatible surface for GMP-controlled processes
Food and beverage
SS316 body with FDA-compliant PTFE sleeve for edible oil, beverage concentrate, and food ingredient lines; CIP-compatible design, no dead zones for microbial growth; easy cleaning of sleeve and plug face
Ultrapure water and semiconductor
SS316 or PVDF body with PFA sleeve for deionised water, ultrapure water (UPW), and semiconductor chemical distribution; no metal contact with the process fluid; low particle generation
Sampling and diversion
small-bore SS316 sleeved plug valves with T-port or L-port for chemical sampling line manifolds and diversion service; quarter-turn operation; compatible with sample system tubing in stainless or PTFE
How to Choose the Right Sleeved Plug Valve
Specify a sleeved plug valve over a lubricated plug valve when: (a) the process fluid is a clean chemical that cannot tolerate sealant contamination; (b) the valve will be infrequently operated and sealant dry-out seizure is a risk; (c) pharmaceutical, food, or semiconductor purity requirements prohibit lubricated designs. Sleeve material selection: PTFE for standard chemical service up to 200°C; PFA for pharmaceutical/ultra-pure applications requiring lower extractables; sleeve should always be confirmed chemically compatible with the process fluid, temperature, and pressure.
Popular Configurations
Most commonly ordered specifications for the Sleeved Plug Valve
Frequently Asked Questions
About Sleeved Plug Valve - ordering, specs, delivery & compliance
What standards does the Sleeved Plug Valve comply with?+
Our Sleeved Plug Valve complies with API 599, MSS SP-78. All products are manufactured to international standards and come with full material test reports (MTR), dimensional inspection reports, and hydrostatic test certificates on request.
What materials are available for the Sleeved Plug Valve?+
The Sleeved Plug Valve is available in Carbon Steel, Stainless Steel. Material selection depends on your process fluid, temperature, pressure, and corrosion requirements.
What is the delivery lead time for Sleeved Plug Valve?+
Standard stock sizes are available for immediate dispatch from our Vadodara warehouse. Custom sizes and special materials typically have a lead time of 2–6 weeks depending on specifications. We serve customers across India within 1–7 business days and export to the Middle East, Southeast Asia, Europe, and the Americas with full export documentation.
Can I get a custom Sleeved Plug Valve for a specific application?+
Yes. Vajra Industrial Solutions supplies custom-engineered plug valves for specific process conditions. Submit your technical requirements - including pressure class, temperature range, fluid type, end connections, and any special trim or coating needs - via our RFQ form or WhatsApp, and our engineering team will respond within 24 hours.
What pressure ratings are available for the Sleeved Plug Valve?+
The Sleeved Plug Valve is available in pressure ratings of PN16, Class 150. Higher-pressure classes are available for critical service applications in oil & gas, power generation, and chemical processing.
How do I request a quote for the Sleeved Plug Valve?+
You can request a quote by clicking the "Request Quote" button on this page, filling out our RFQ form at vajravyuh.com/rfq, emailing us at sales@vajravyuh.com, or WhatsApping us directly at +91-9979774557. Please include quantity, size, pressure class, material grade, and end-connection type for the fastest response.
