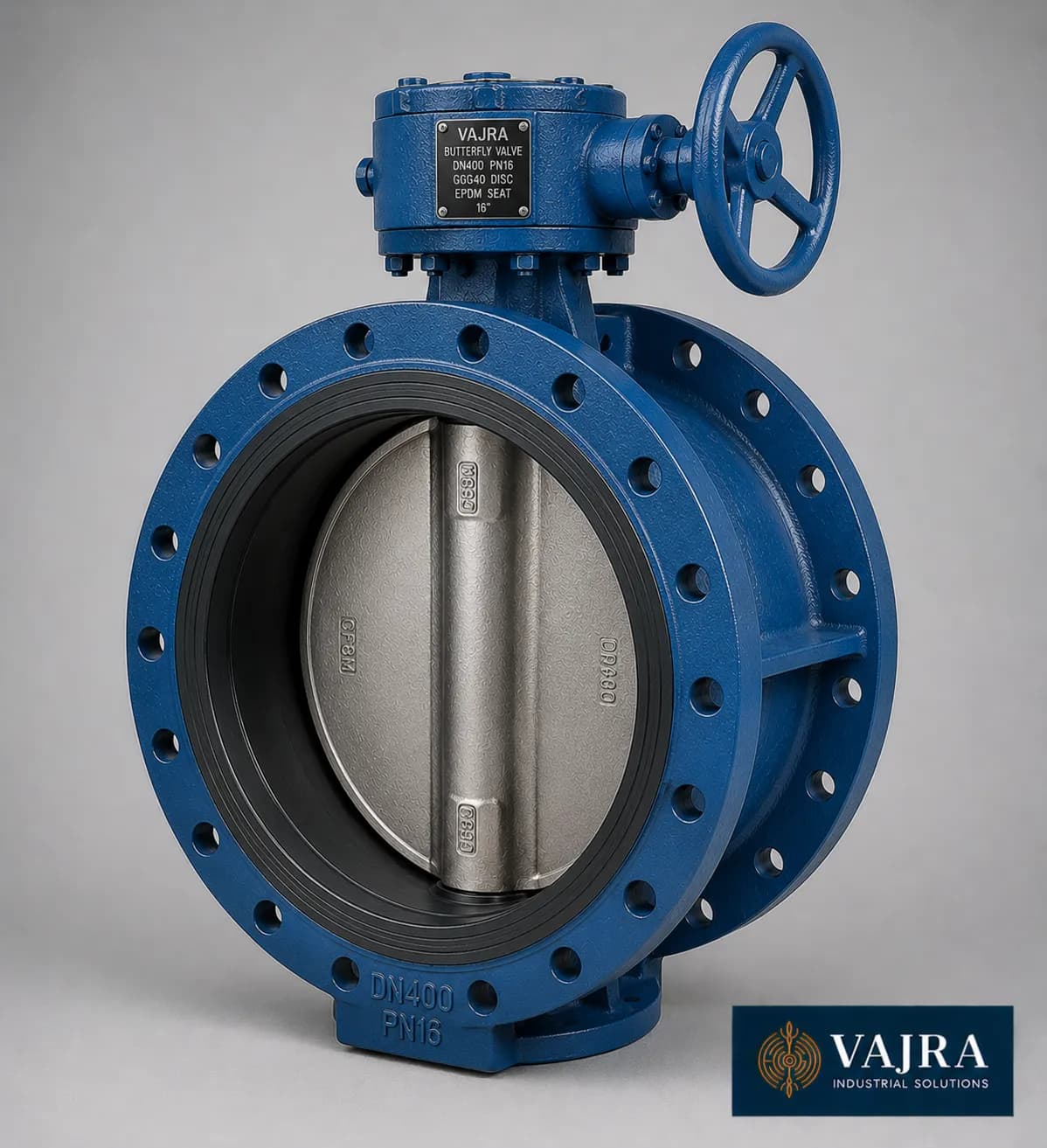

Double Flanged Butterfly Valve
Heavy-duty flanged design for high-pressure and critical service applications.
Technical Specifications
| Type | Double Flanged |
| Size Range | 2" to 48" (50 mm to 1200 mm) |
| Body Materials | Ductile Iron, Carbon Steel, Stainless Steel |
| Disc Material | SS304, SS316, Duplex |
| Seat Material | EPDM, NBR, PTFE, Metal |
| End Connections | Flanged (RF, FF) |
| Pressure Rating | PN10 / PN16 / PN25 |
| Standards | API 609, EN 593, BS 5155 |
Applications
Water transmission, industrial process, fire protection
About the Double Flanged Butterfly Valve
The double flanged butterfly valve is the heavy-duty variant of the butterfly valve family, featuring integral raised-face or flat-face flanges cast directly onto both ends of the body. Unlike wafer and lug designs that rely on the adjacent pipe flanges for structural support, the double flanged body is self-supporting and can carry the full pipe bending moments and axial loads independently. This structural integrity makes double flanged butterfly valves the design of choice for large-diameter water transmission mains, raw water intake systems, and industrial pipelines where the valve must be fully self-supporting in the pipeline - particularly at expansion joint connections, pump connections where vibration loads are present, or in long pipeline runs where the valve cannot rely on closely spaced adjacent supports.
Double flanged butterfly valves are available with resilient elastomer seats (EPDM, NBR, PTFE) for standard process and water service, or with metal-to-metal seats for high-temperature and critical shut-off applications. Body materials range from Ductile Iron (water and general service), Carbon Steel (industrial process), to Stainless Steel and Duplex (corrosive or marine service). Vajra Industrial Solutions supplies double flanged butterfly valves in sizes 2" to 48" to API 609 Category B, EN 593, and BS 5155, tested to API 598 seat leak criteria.
Where It's Used
Key industries and applications for the Double Flanged Butterfly Valve
Large water transmission mains
Ductile Iron double flanged butterfly valves (DN300–DN1200) on municipal water supply trunk mains, reservoir inlet valves, and water treatment plant inlet screens; EPDM or natural rubber seat for potable water
Hydroelectric and dam water intake
Carbon Steel or Ductile Iron double flanged butterfly valves on penstock isolation, draft tube closure, and intake screen bypass; heavy-duty design handles water hammer and surge loads on large pipe runs
Industrial process cooling water
large-bore Carbon Steel double flanged butterfly valves on once-through cooling water supply and return for power station condensers, steel plant blast furnace cooling, and chemical plant heat exchangers
Marine and shipboard applications
SS316 or Duplex double flanged butterfly valves for seawater ballast, bilge, and cooling water main isolation valves; structural flanges handle ship hull flexure and vibration without piping misalignment
Irrigation and canal distribution
Ductile Iron double flanged butterfly valves on irrigation main distribution headers, offtake gates, and pump station discharge; economical large-bore design for agriculture and canal authority infrastructure
How to Choose the Right Double Flanged Butterfly Valve
Specify a double flanged butterfly valve for large-bore (typically 8" / DN200 and above) applications where the valve must be self-supporting, where bending loads in the pipeline are significant, or where the valve is installed at an expansion joint, pump nozzle, or long straight run without close pipe supports. For small-bore utility and HVAC applications, wafer or lug style is lighter and more economical. Double flanged design meets API 609 Category B requirements for higher-integrity refinery and process plant service.
Popular Configurations
Most commonly ordered specifications for the Double Flanged Butterfly Valve
Frequently Asked Questions
About Double Flanged Butterfly Valve - ordering, specs, delivery & compliance
What standards does the Double Flanged Butterfly Valve comply with?+
Our Double Flanged Butterfly Valve complies with API 609, EN 593, BS 5155. All products are manufactured to international standards and come with full material test reports (MTR), dimensional inspection reports, and hydrostatic test certificates on request.
What materials are available for the Double Flanged Butterfly Valve?+
The Double Flanged Butterfly Valve is available in Ductile Iron, Carbon Steel, Stainless Steel. Material selection depends on your process fluid, temperature, pressure, and corrosion requirements.
What is the delivery lead time for Double Flanged Butterfly Valve?+
Standard stock sizes are available for immediate dispatch from our Vadodara warehouse. Custom sizes and special materials typically have a lead time of 2–6 weeks depending on specifications. We serve customers across India within 1–7 business days and export to the Middle East, Southeast Asia, Europe, and the Americas with full export documentation.
Can I get a custom Double Flanged Butterfly Valve for a specific application?+
Yes. Vajra Industrial Solutions supplies custom-engineered butterfly valves for specific process conditions. Submit your technical requirements - including pressure class, temperature range, fluid type, end connections, and any special trim or coating needs - via our RFQ form or WhatsApp, and our engineering team will respond within 24 hours.
What pressure ratings are available for the Double Flanged Butterfly Valve?+
The Double Flanged Butterfly Valve is available in pressure ratings of PN10 / PN16 / PN25. Higher-pressure classes are available for critical service applications in oil & gas, power generation, and chemical processing.
How do I request a quote for the Double Flanged Butterfly Valve?+
You can request a quote by clicking the "Request Quote" button on this page, filling out our RFQ form at vajravyuh.com/rfq, emailing us at sales@vajravyuh.com, or WhatsApping us directly at +91-9979774557. Please include quantity, size, pressure class, material grade, and end-connection type for the fastest response.
Need a Quote for Double Flanged Butterfly Valve?
Our technical sales team responds within 24 hours. Share your specs and get competitive pricing.
Other Butterfly Valves
Wafer Type Butterfly Valve
Lightweight wafer design that fits between flanges for space-saving installation.
View Details →

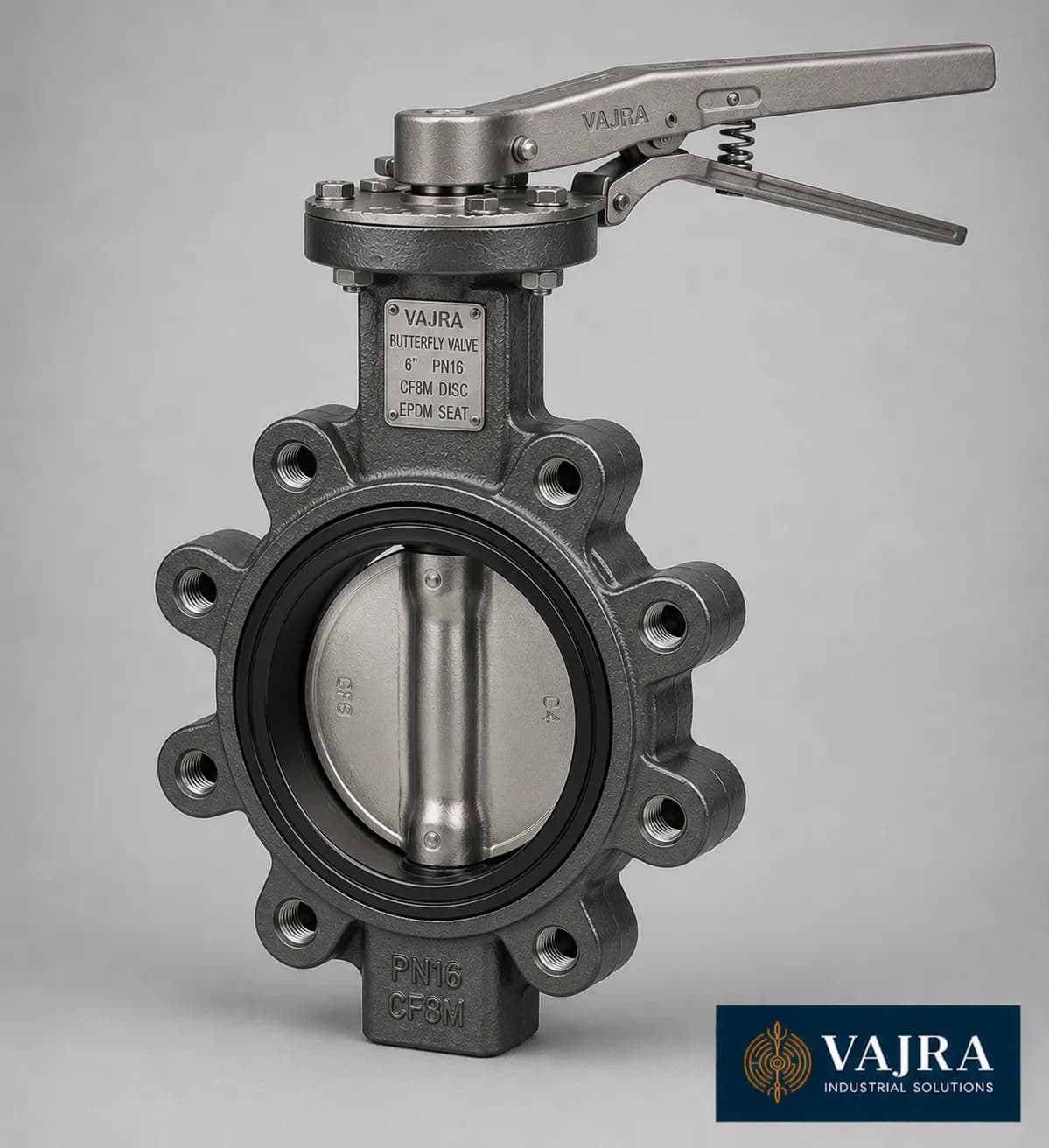

Lug Type Butterfly Valve
