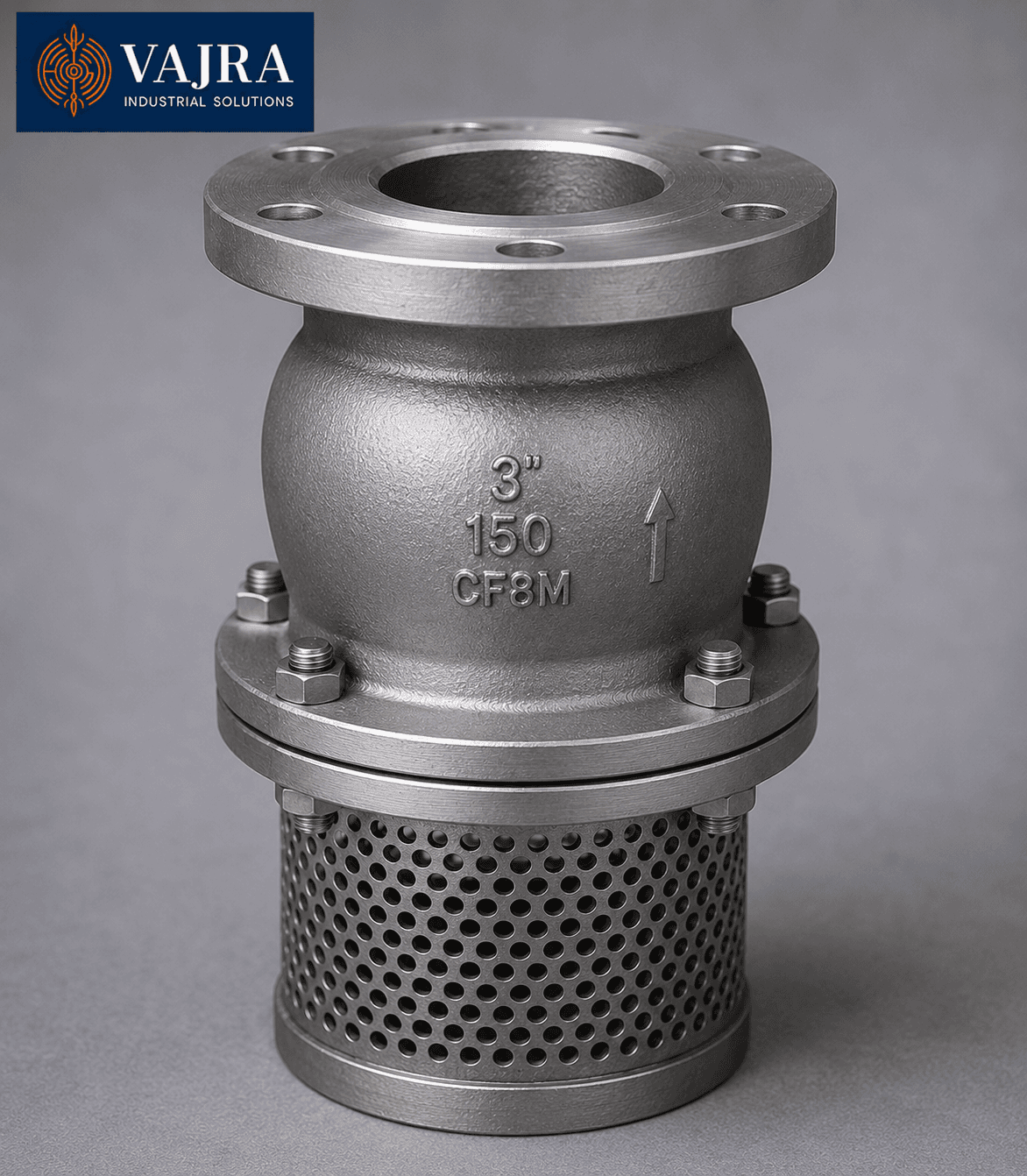

Foot Valve
Suction-line check valve with integral strainer installed at the pump inlet to maintain prime and prevent backflow.
Technical Specifications
| Type | Foot Valve with Strainer |
| Size Range | 1/2" to 12" (15 mm to 300 mm) |
| Body Materials | Cast Iron, Bronze, Stainless Steel, PVC |
| Disc Material | Bronze, SS304, SS316 |
| Strainer | Integral perforated screen |
| End Connections | Screwed (BSP / NPT), Flanged |
| Pressure Rating | PN10 / PN16 |
| Standards | BS 5153 |
| Lead Time | Ex-stock Gujarat: Same day | Standard items: 2–4 weeks | Exotic alloys: 8–12 weeks |
Applications
Pump priming, irrigation, borehole pumps, water supply
About the Foot Valve
The foot valve is a specialised check valve installed at the bottom of a pump suction pipe - submerged in a well, sump, pit, river, or water storage tank - whose primary function is to retain the water column (prime) in the suction pipe when the pump is stopped. Without a foot valve, the water in the suction pipe would drain back into the source by gravity each time the pump stops, causing the suction pipe to fill with air. The next time the pump starts, it would lose prime and either fail to pump or run dry and damage itself. The foot valve's spring-loaded or gravity-loaded disc holds the water column in place, ensuring the pump is always ready to start immediately without manual priming.
Foot valves are always combined with an integral strainer basket at the inlet to prevent debris, leaves, stones, and pipe scale from entering the suction line and damaging the pump impeller. The strainer screen area is typically 3–5 times the pipe bore area to ensure adequate flow even with partial blockage. Foot valves are available in Cast Iron, Bronze, Stainless Steel, and PVC body materials to serve potable water, irrigation, agricultural, and industrial dewatering applications. Vajra Industrial Solutions supplies foot valves in sizes 1/2" to 12" to BS 5153 with various strainer mesh options.
Where It's Used
Key industries and applications for the Foot Valve
Irrigation and agricultural pumping
Cast Iron or PVC foot valves on suction inlets of centrifugal irrigation pumps drawing from canals, reservoirs, or open sumps; integral strainer prevents weed, debris, and sediment ingestion; available in large bore up to 12" for high-flow agricultural pumps
Building water supply and pressure boosting
Bronze foot valves on submersible and end-suction pump suction inlets in building sump cisterns, underground water storage tanks, and overhead tank supply points; maintains prime and prevents pump dry-running
Construction site dewatering
robust Cast Iron or Ductile Iron foot valves on dewatering pump suction in temporary excavation pits, cofferdams, and building basements; heavy-duty strainer handles sandy/silty water
Industrial sump and condensate recovery
SS316 foot valves on condensate pit pump suction in power plants, steam-using process plants, and laundry/kitchen drain recovery systems; stainless construction resists corrosion in condensate
Borehole and submersible well pumps
compact Bronze or SS316 foot valves at the base of borehole pump suction column in water wells, geothermal boreholes, and industrial groundwater extraction; prevents drawdown column drain-back
How to Choose the Right Foot Valve
Foot valves are required whenever a centrifugal pump draws from an open sump, tank, or reservoir and the pump is positioned above the water surface - i.e., whenever the pump must maintain suction lift. For submersible pumps (pump below water level), a foot valve is not needed as the pump is always primed. Select body material to match the liquid: Bronze or SS316 for potable water; Cast Iron for non-potable water and irrigation; PVC for mildly corrosive water. Size the foot valve based on the pump suction pipe diameter, not the pump connection size.
Popular Configurations
Most commonly ordered specifications for the Foot Valve
Frequently Asked Questions
About Foot Valve - ordering, specs, delivery & compliance
What standards does the Foot Valve comply with?+
Our Foot Valve complies with BS 5153. All products are manufactured to international standards and come with full material test reports (MTR), dimensional inspection reports, and hydrostatic test certificates on request.
What materials are available for the Foot Valve?+
The Foot Valve is available in Cast Iron, Bronze, Stainless Steel, PVC. Material selection depends on your process fluid, temperature, pressure, and corrosion requirements.
What is the delivery lead time for Foot Valve?+
Standard stock sizes are available for immediate dispatch from our Vadodara warehouse. Custom sizes and special materials typically have a lead time of 2–6 weeks depending on specifications. We serve customers across India within 1–7 business days and export to the Middle East, Southeast Asia, Europe, and the Americas with full export documentation.
Can I get a custom Foot Valve for a specific application?+
Yes. Vajra Industrial Solutions supplies custom-engineered check valves for specific process conditions. Submit your technical requirements - including pressure class, temperature range, fluid type, end connections, and any special trim or coating needs - via our RFQ form or WhatsApp, and our engineering team will respond within 24 hours.
What pressure ratings are available for the Foot Valve?+
The Foot Valve is available in pressure ratings of PN10 / PN16. Higher-pressure classes are available for critical service applications in oil & gas, power generation, and chemical processing.
How do I request a quote for the Foot Valve?+
You can request a quote by clicking the "Request Quote" button on this page, filling out our RFQ form at vajravyuh.com/rfq, emailing us at sales@vajravyuh.com, or WhatsApping us directly at +91-9979774557. Please include quantity, size, pressure class, material grade, and end-connection type for the fastest response.
Need a Quote for Foot Valve?
Our technical sales team responds within 24 hours. Share your specs and get competitive pricing.
Other Check Valves

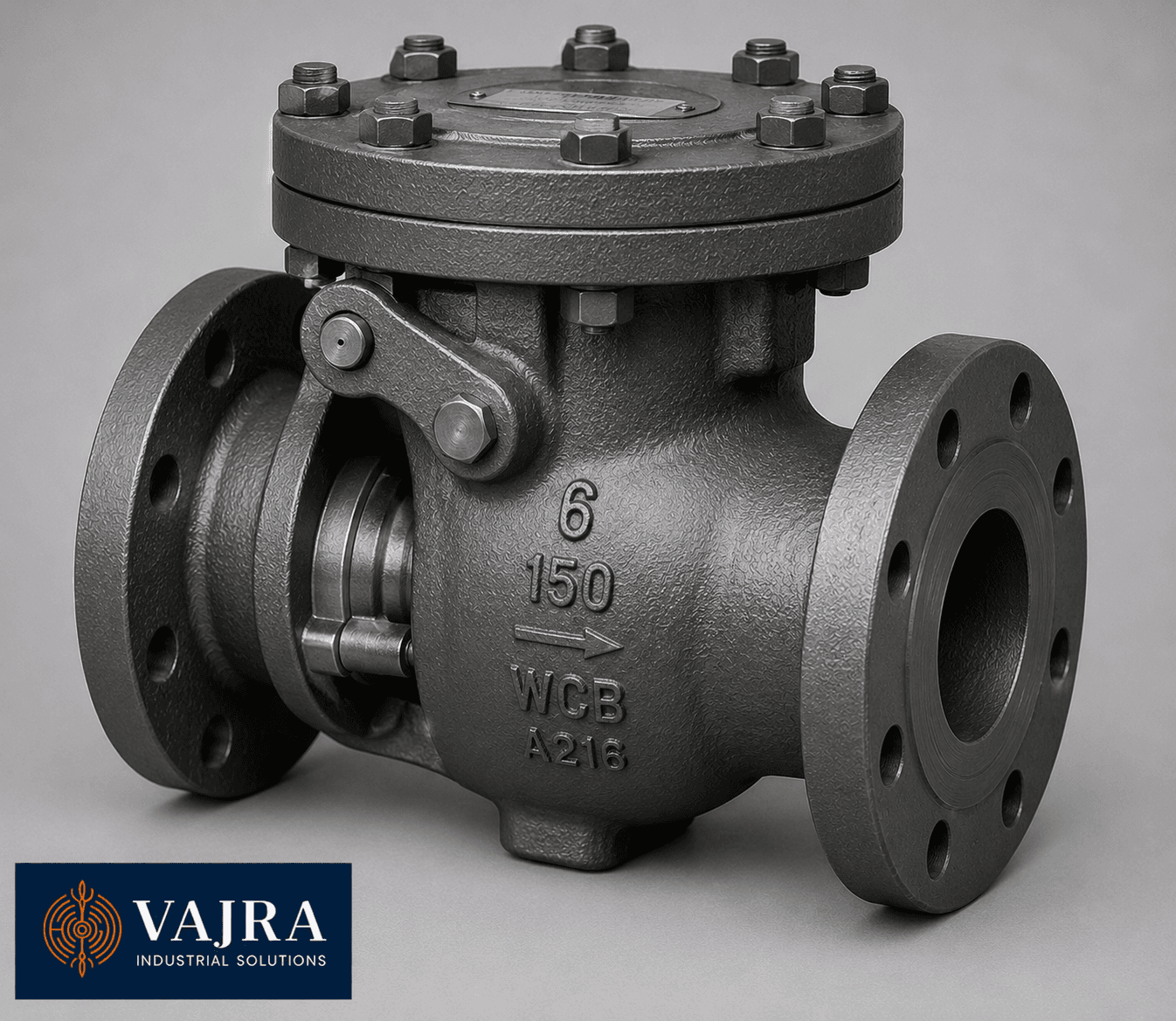

Swing Check Valve
Traditional hinged disc design for horizontal or vertical upward flow applications.
View Details →

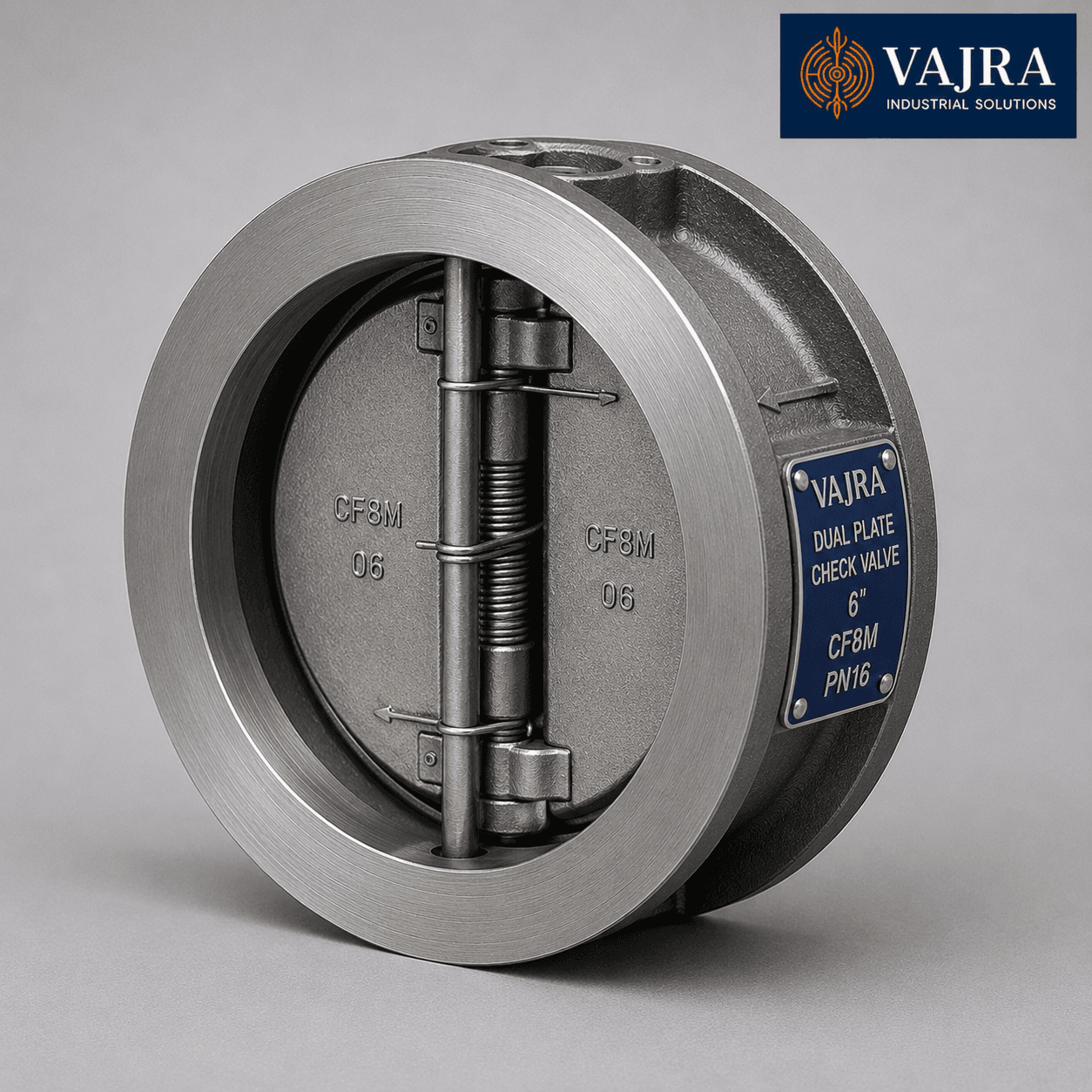

Dual Plate Check Valve
Compact wafer-style check valve with twin spring-loaded plates for quick closure.
View Details →

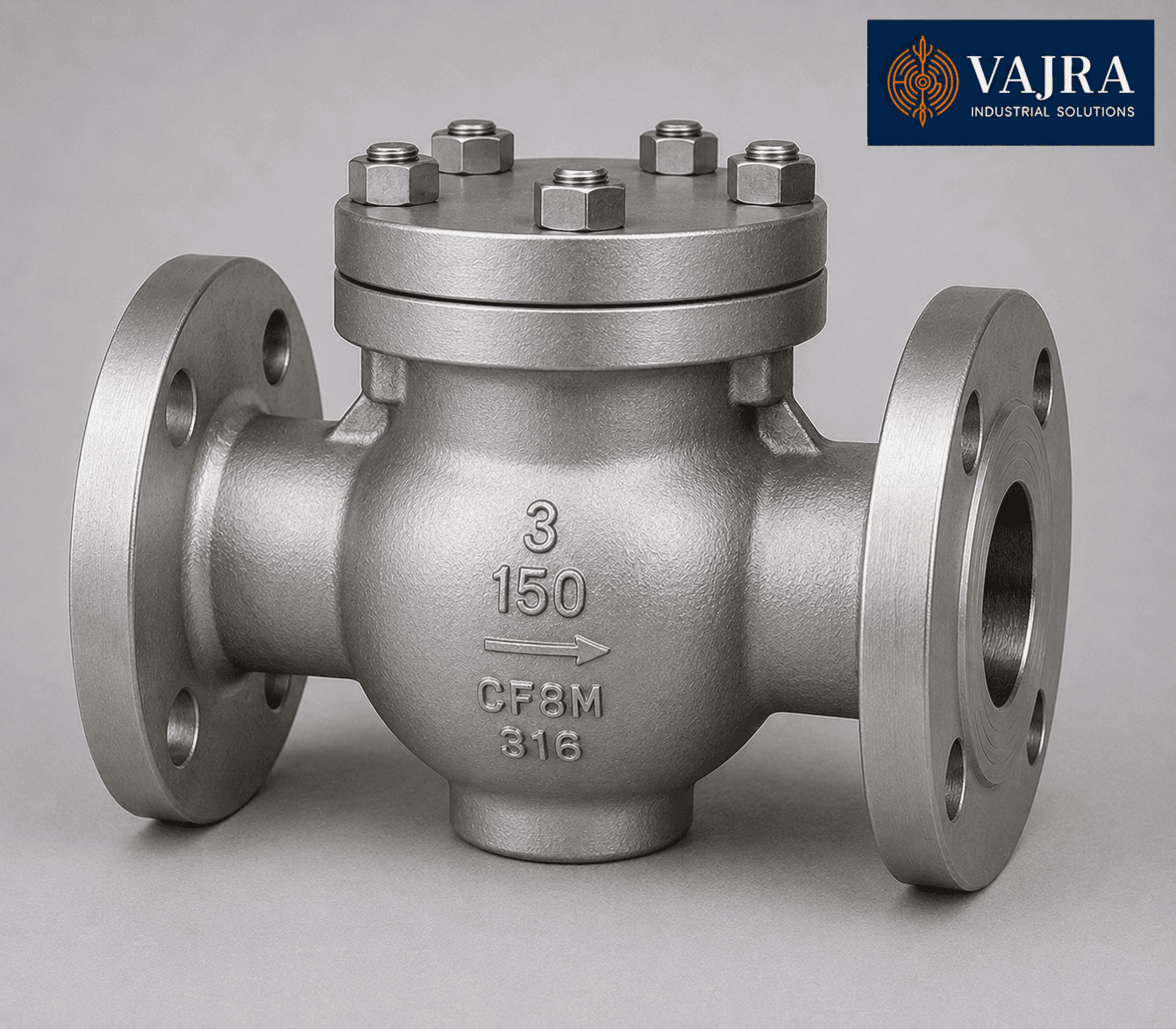

Lift Check Valve
Piston or ball type lift check for vertical flow and high-pressure applications.
View Details →

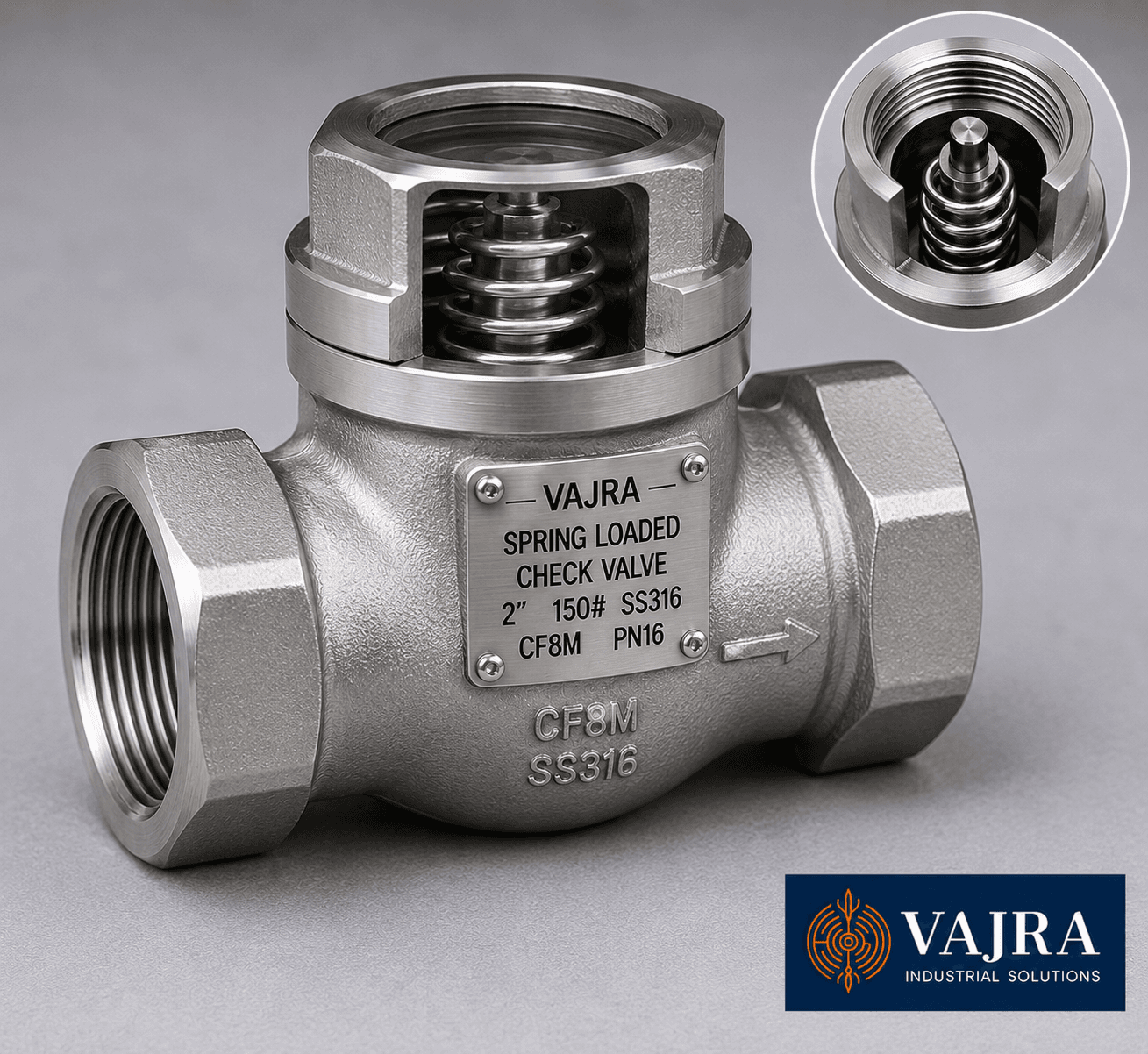

Spring Loaded Check Valve
