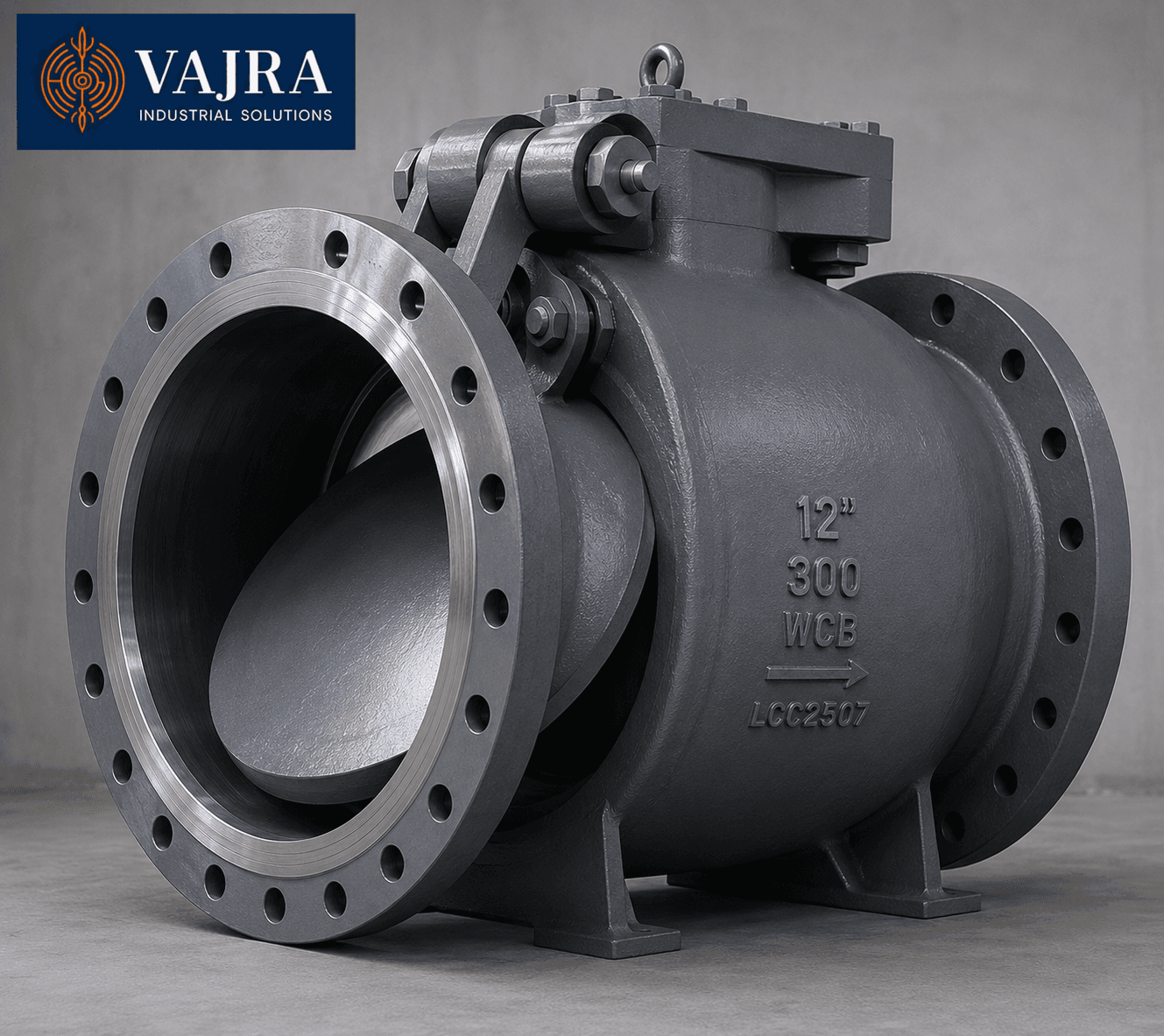

Tilting Disc Check Valve
Pivoting disc design with low cracking pressure and near-silent non-slam closure for large pipelines.
Technical Specifications
| Type | Tilting Disc (Non-Slam) |
| Size Range | 2" to 36" (50 mm to 900 mm) |
| Body Materials | Carbon Steel, Stainless Steel, Duplex |
| Disc Material | SS304, SS316, Duplex, Stellite faced |
| Seat Material | Metal Seated / Resilient |
| End Connections | Flanged (RF, RTJ) |
| Pressure Rating | Class 150 / 300 / 600 |
| Standards | API 6D,BS 1868 |
| Lead Time | Ex-stock Gujarat: Same day | Standard items: 2–4 weeks | Exotic alloys: 8–12 weeks |
Applications
Large pumping stations, water transmission, power plants, pipelines
About the Tilting Disc Check Valve
The tilting disc check valve achieves non-slam closure through a unique pivot geometry: the disc pivots on a hinge pin positioned slightly above the disc's centre of gravity. This off-centre pivot means that when forward flow is present, the disc tilts to a nearly horizontal position with the lower half presenting minimal obstruction to flow and a very low cracking pressure. As flow velocity decreases toward pump shutdown, the disc begins to tilt back toward the closed position driven by gravity on the lower half and by the reducing flow force - the closure is a gradual tilting motion rather than a wide swinging arc. The disc arrives at the seat at low velocity, making seat contact softly without the slamming impact of a conventional swing check.
The tilting disc design is particularly suited to large-bore pipeline applications where the combination of low pressure drop in the open position and controlled non-slam closure is critical. In large-diameter lines (12"–36"), the mass and momentum of the disc in a swing check at full open can generate severe water hammer on pump trip - the tilting disc check avoids this entirely. The flanged body (as opposed to the wafer body of dual plate checks) provides the structural rigidity needed for large-bore pipeline installations. Vajra Industrial Solutions supplies tilting disc check valves in sizes 2" to 36" in Carbon Steel, Stainless Steel, and Duplex to API 6D and BS 1868.
Where It's Used
Key industries and applications for the Tilting Disc Check Valve
Large pumping stations and water mains
Carbon Steel or Ductile Iron tilting disc check valves (12"–36") on large-bore pump discharge headers; non-slam closure prevents water hammer damage to pipe joints, instruments, and adjacent equipment
Power station cooling water and boiler feed
Class 300–600 WCB tilting disc check valves on cooling water pump discharge, BFW (boiler feed water) make-up, and emergency cooling water headers; reliable non-slam operation at high flow velocities
Oil and gas pipelines
Carbon Steel Class 300–600 tilting disc check valves on natural gas and crude oil pipeline pump/compressor discharge; API 6D compliance; full-bore design passes inspection pigs in through-conduit configurations
Water injection and sea water lift pumps
Duplex 2205 tilting disc check valves on offshore seawater injection pump discharge; NACE MR0175 compliant for sour service; large-bore design handles high injection flow rates
Desalination plant high-pressure feed
SS316 or Duplex tilting disc check valves on reverse osmosis high-pressure feed pump discharge; low pressure drop in open position reduces energy consumption at high-flow operation
How to Choose the Right Tilting Disc Check Valve
Specify a tilting disc check valve for large-bore (6"–36") pipeline applications where: (a) non-slam closure is required to prevent water hammer; (b) the installation requires a flanged (not wafer) connection for structural support in large-bore piping; or (c) low cracking pressure and low pressure drop in the open position are both required. Dual plate check valves (wafer body) are preferred for space-constrained installations and intermediate sizes (2"–12"). For sizes above 24", confirm with the manufacturer whether the disc can be fully supported by the hinge at the minimum flow velocity.
Popular Configurations
Most commonly ordered specifications for the Tilting Disc Check Valve
Frequently Asked Questions
About Tilting Disc Check Valve - ordering, specs, delivery & compliance
What standards does the Tilting Disc Check Valve comply with?+
Our Tilting Disc Check Valve complies with API 6D, BS 1868. All products are manufactured to international standards and come with full material test reports (MTR), dimensional inspection reports, and hydrostatic test certificates on request.
What materials are available for the Tilting Disc Check Valve?+
The Tilting Disc Check Valve is available in Carbon Steel, Stainless Steel, Duplex. Material selection depends on your process fluid, temperature, pressure, and corrosion requirements.
What is the delivery lead time for Tilting Disc Check Valve?+
Standard stock sizes are available for immediate dispatch from our Vadodara warehouse. Custom sizes and special materials typically have a lead time of 2–6 weeks depending on specifications. We serve customers across India within 1–7 business days and export to the Middle East, Southeast Asia, Europe, and the Americas with full export documentation.
Can I get a custom Tilting Disc Check Valve for a specific application?+
Yes. Vajra Industrial Solutions supplies custom-engineered check valves for specific process conditions. Submit your technical requirements - including pressure class, temperature range, fluid type, end connections, and any special trim or coating needs - via our RFQ form or WhatsApp, and our engineering team will respond within 24 hours.
What pressure ratings are available for the Tilting Disc Check Valve?+
The Tilting Disc Check Valve is available in pressure ratings of Class 150 / 300 / 600. Higher-pressure classes are available for critical service applications in oil & gas, power generation, and chemical processing.
How do I request a quote for the Tilting Disc Check Valve?+
You can request a quote by clicking the "Request Quote" button on this page, filling out our RFQ form at vajravyuh.com/rfq, emailing us at sales@vajravyuh.com, or WhatsApping us directly at +91-9979774557. Please include quantity, size, pressure class, material grade, and end-connection type for the fastest response.
