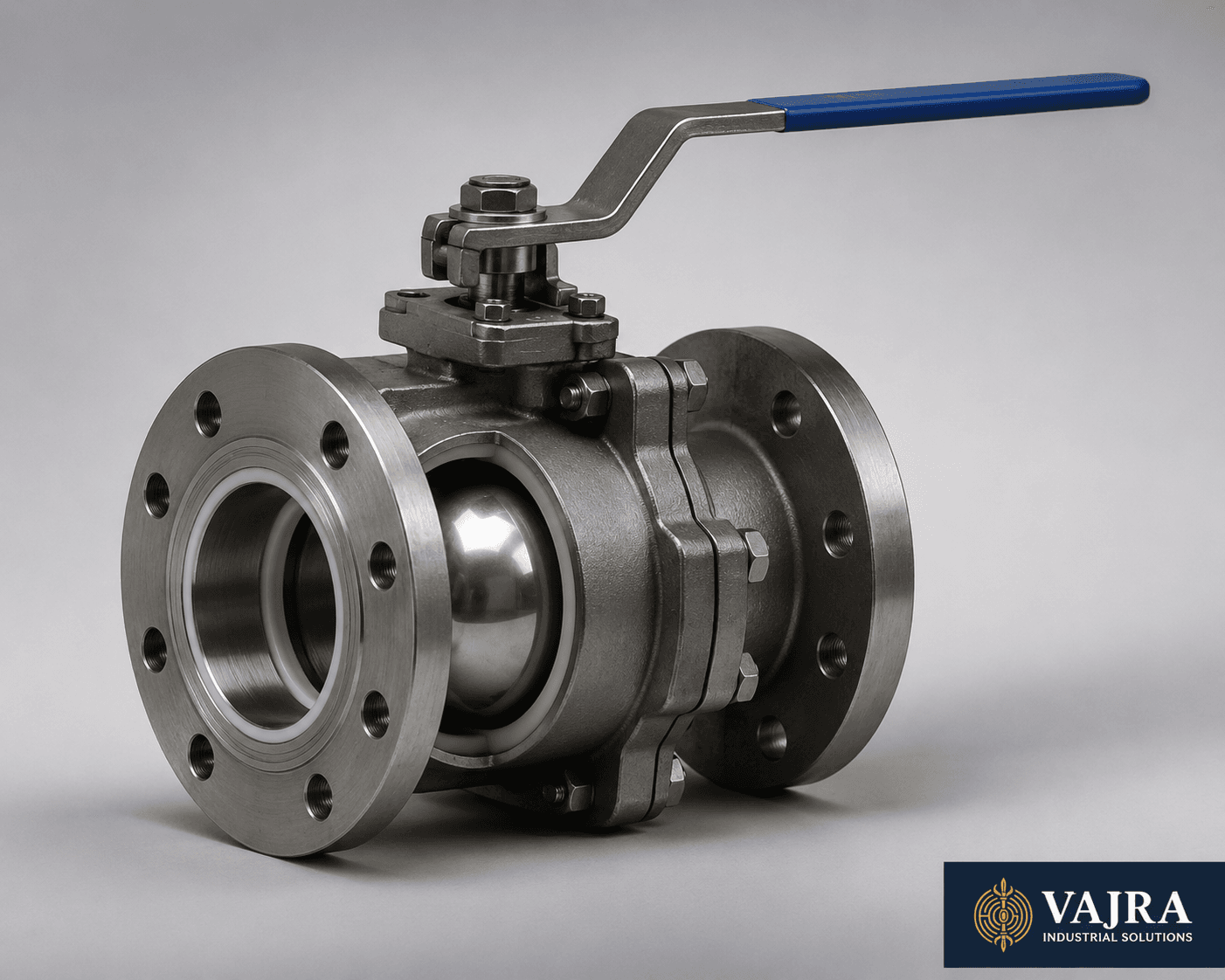

Floating Ball Valve
Standard floating design where the ball is supported by two seat rings, ideal for low to medium pressure applications.
Technical Specifications
| Type | Floating |
| Size Range | 1/4" to 24" (6 mm to 600 mm) |
| Body Materials | Carbon Steel (WCB), SS304, SS316, CF8/CF8M, DI, CI, Brass |
| Ball Material | SS304 / SS316 / Chrome Plated |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seated |
| Stem Design | Blow-out proof, anti-static |
| End Connections | Threaded, Socket Weld, Butt Weld, Flanged |
| Pressure Rating | PN10 / PN16 / PN25 / PN40, Class 150 / 300 / 600 |
| Standards | API 6D, API 608, BS 5351, ISO 17292 |
Applications
Water, oil, gas, air, chemicals, utilities
About the Floating Ball Valve
The floating ball valve is the workhorse quarter-turn isolation valve for the majority of general industrial piping applications. In this design, the ball is not mechanically anchored - it "floats" between the two seat rings, held in contact with the downstream seat by line pressure acting on the upstream face of the ball. This pressure-assisted sealing mechanism ensures a reliable, bubble-tight shut-off across the Class 150 to Class 600 pressure range when the valve is closed. The full-bore version provides zero restriction to flow when fully open, contributing negligible pressure drop to the system. The quarter-turn (90-degree) operation enables fast opening and closing - a significant safety advantage over gate valves in emergency isolation service.
Vajra Industrial Solutions supplies floating ball valves from 1/4" to 24" in body materials including Carbon Steel WCB, Stainless Steel SS304/SS316, CF8/CF8M, Ductile Iron, Cast Iron, and Brass. Seat options span PTFE (standard), RPTFE (reinforced), PEEK (high-temperature), and metal-to-metal (fire-safe Stellite or SS316 hard-faced) for elevated temperature and fire-safe duty. Anti-static devices and blow-out-proof stems are standard on all sizes. All valves meet API 6D, API 608, BS 5351, and ISO 17292 with hydrostatic shell and seat test certificates per API 598.
Where It's Used
Key industries and applications for the Floating Ball Valve
Oil & gas production and gathering
Class 150–600 WCB floating ball valves for wellhead isolation, production header block valves, test separator in/outlet, and fuel gas systems; blow-out-proof stems and fire-safe PTFE seats per API 607
Water treatment and municipal utilities
SS316 or Ductile Iron floating ball valves in PN16/PN25 for drinking water, irrigation header isolation, and pumping station on/off service; WRAS-approved EPDM-lined versions available
Chemical processing
SS316 or CF8M floating ball valves for acid, alkali, solvent, and reagent line isolation; full-bore design eliminates dead zones; PTFE or RPTFE seats compatible with a wide range of process chemicals
HVAC and building services
Carbon Steel or Brass floating ball valves for chilled water, heating water, condenser water, and compressed air line isolation; compact threaded and socket weld designs for small-bore instrument and utility lines
Compressed air and gas
Brass or SS316 floating ball valves for instrument air, nitrogen, and plant gas distribution headers; quick quarter-turn operation for safe, reliable isolation during maintenance
How to Choose the Right Floating Ball Valve
Floating ball valves are the correct choice for sizes up to 4"–6" at Class 150–300 in clean, non-abrasive service where tight shut-off and quick operation are needed. For sizes 6" and above at Class 300 or higher, or for frequent automated cycling, upgrade to a trunnion mounted ball valve to manage seat loads and operating torque. Select PTFE seats for general service up to 180°C; PEEK for 180–260°C or steam service; metal-seated Stellite for fire-safe duty, abrasive media, or temperatures above 260°C. Match body material to fluid chemistry - SS316 for corrosive fluids, WCB for hydrocarbons.
Popular Configurations
Most commonly ordered specifications for the Floating Ball Valve
Frequently Asked Questions
About Floating Ball Valve - ordering, specs, delivery & compliance
What standards does the Floating Ball Valve comply with?+
Our Floating Ball Valve complies with API 6D, API 608, BS 5351, ISO 17292. All products are manufactured to international standards and come with full material test reports (MTR), dimensional inspection reports, and hydrostatic test certificates on request.
What materials are available for the Floating Ball Valve?+
The Floating Ball Valve is available in Carbon Steel (WCB), SS304, SS316, CF8/CF8M, DI, CI, Brass. Material selection depends on your process fluid, temperature, pressure, and corrosion requirements.
What is the delivery lead time for Floating Ball Valve?+
Standard stock sizes are available for immediate dispatch from our Vadodara warehouse. Custom sizes and special materials typically have a lead time of 2–6 weeks depending on specifications. We serve customers across India within 1–7 business days and export to the Middle East, Southeast Asia, Europe, and the Americas with full export documentation.
Can I get a custom Floating Ball Valve for a specific application?+
Yes. Vajra Industrial Solutions supplies custom-engineered ball valves for specific process conditions. Submit your technical requirements - including pressure class, temperature range, fluid type, end connections, and any special trim or coating needs - via our RFQ form or WhatsApp, and our engineering team will respond within 24 hours.
What pressure ratings are available for the Floating Ball Valve?+
The Floating Ball Valve is available in pressure ratings of PN10 / PN16 / PN25 / PN40, Class 150 / 300 / 600. Higher-pressure classes are available for critical service applications in oil & gas, power generation, and chemical processing.
How do I request a quote for the Floating Ball Valve?+
You can request a quote by clicking the "Request Quote" button on this page, filling out our RFQ form at vajravyuh.com/rfq, emailing us at sales@vajravyuh.com, or WhatsApping us directly at +91-9979774557. Please include quantity, size, pressure class, material grade, and end-connection type for the fastest response.
Need a Quote for Floating Ball Valve?
Our technical sales team responds within 24 hours. Share your specs and get competitive pricing.
Other Ball Valves

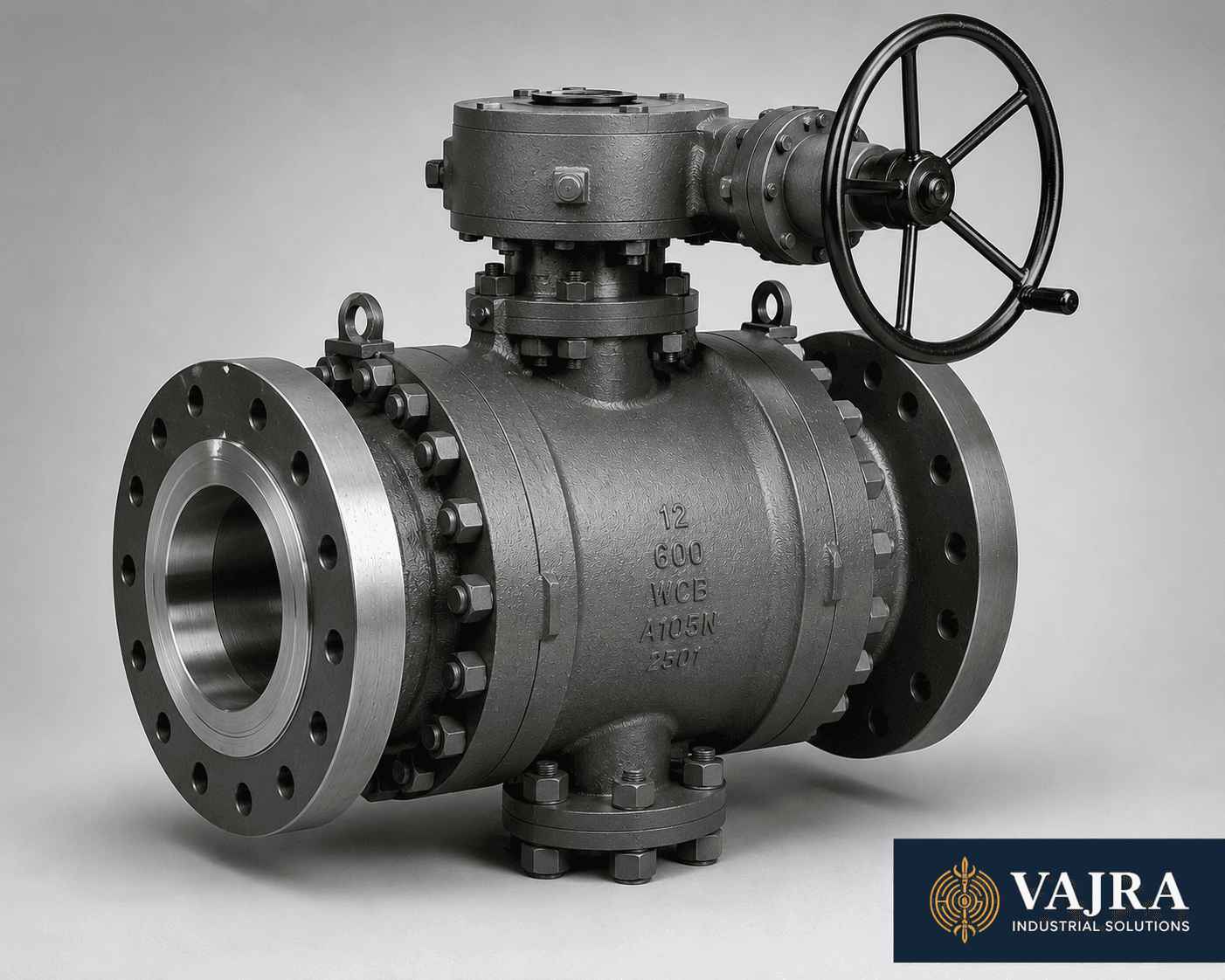

Trunnion Mounted Ball Valve
Heavy-duty design with additional mechanical anchoring of the ball for high-pressure and large-diameter pipelines.
View Details →

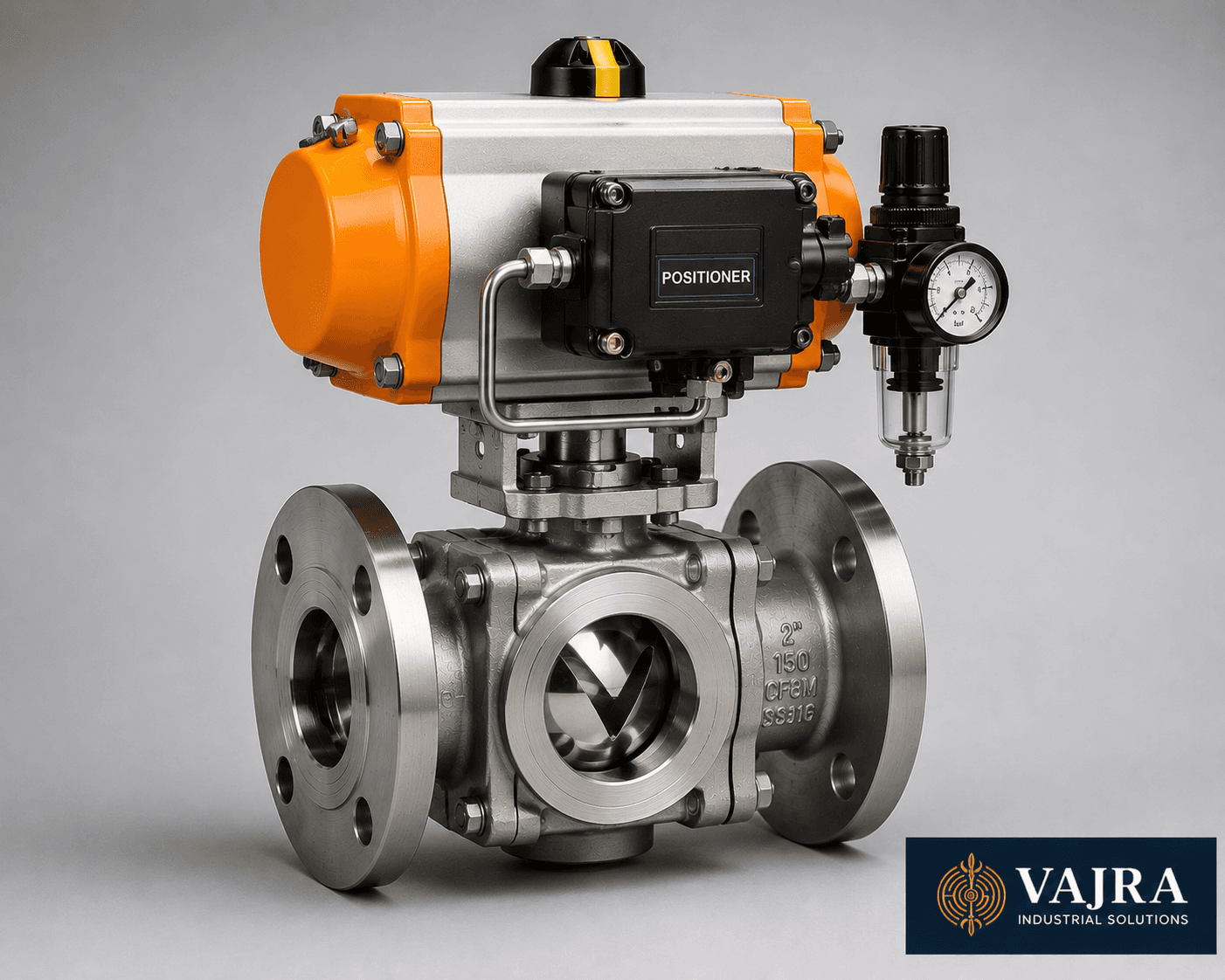

V-Port Ball Valve
Control valve with V-shaped ball or seat for precise flow regulation and throttling applications.
View Details →

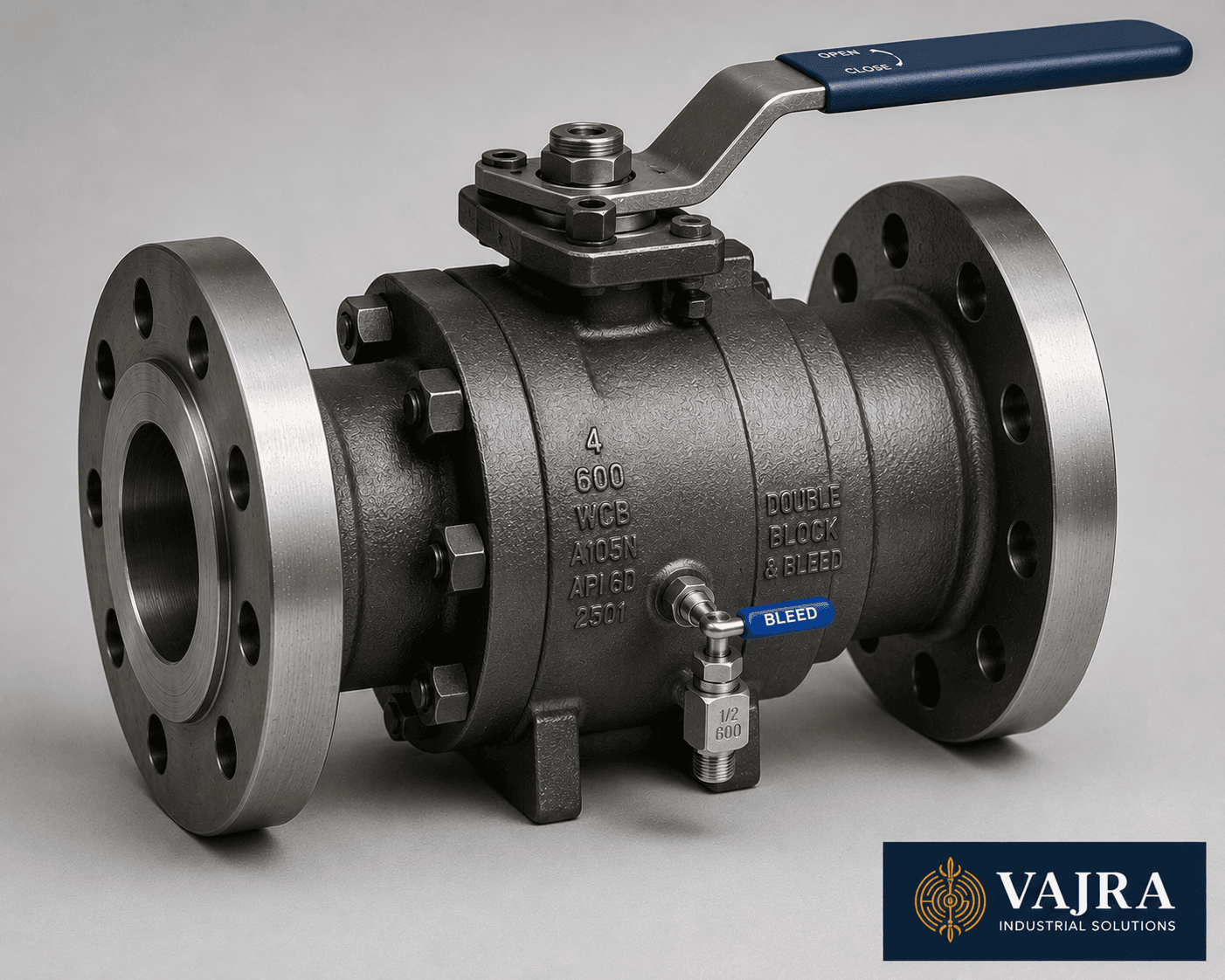

Double Block & Bleed Ball Valve
DBB design with two independent seating surfaces and a bleed valve for positive isolation and cavity venting in critical services.
View Details →

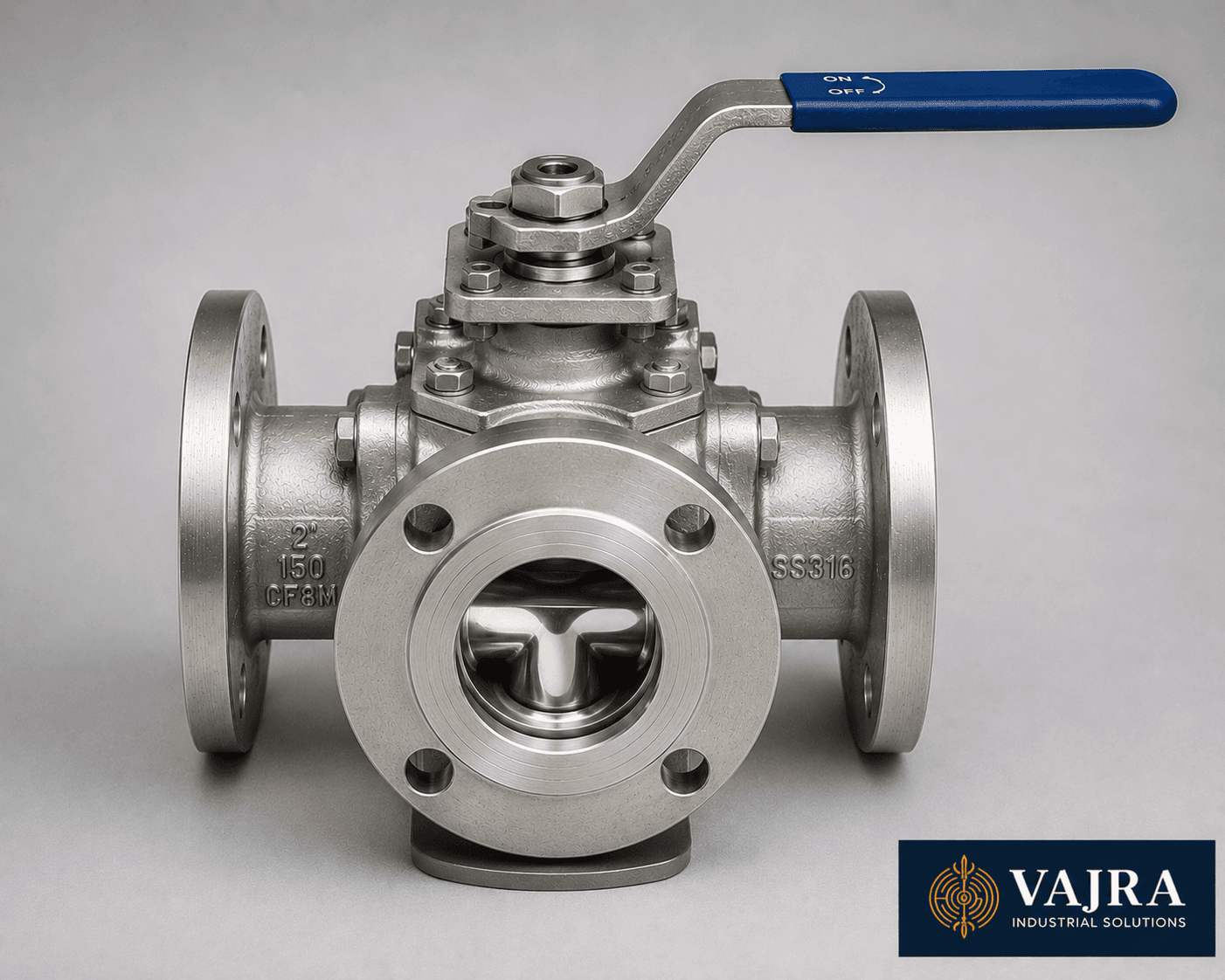

3-Way Ball Valve
